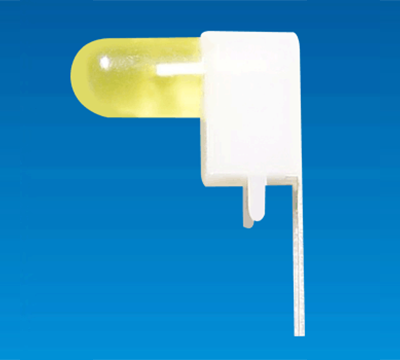

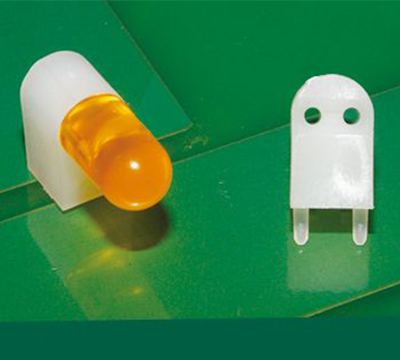

LED HOUSING LEH5-3T
- Stand LED lamp on circuit board.
- Pad LED with distance from circuit board.
- Suit for 5mm 2 pin LED lamp.
- Right angle with mount feet design.
LED HOUSING LEH5-3T
FEATURES
SPECIFICATION
FOR Ø5 2PIN LED
FEATURES
- Stand LED lamp on circuit board.
- Pad LED with distance from circuit board.
- Suit for 5mm 2 pin LED lamp.
- Right angle with mount feet design.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL, BLACK
FOR Ø5 2PIN LED
| PART NO | A | B | D | PACKAGE |
| LEH5-3T | 3.0 | 2.5 | Ø1.0 | 1000 |
| LEH5-4.5T | 4.5 | 2.5 | Ø1.1 | |
| LEH5-6T | 6.0 | 2.5 | Ø1.0 | |
| LEH5-7T | 7.0 | |||
| LEH5-8T | 8.0 | 2.9 | Ø1.0 | |
| LEH5-9T | 9.0 | |||
| LEH5-10T | 10.0 | |||
| LEH5-12.5T | 12.5 | |||
| LEH5-16T | 16.0 |
