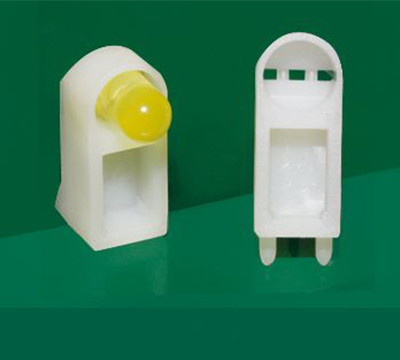

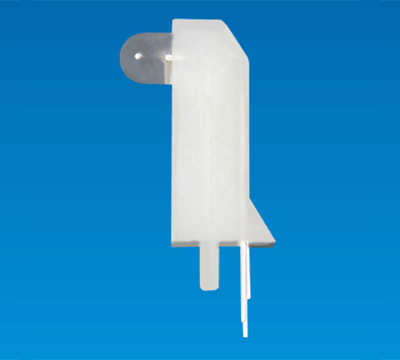

LED HOUSING LEK2-5TW
- Stand LED lamp on circuit board.
- Pad LED with distance from circuit board.
- Suit for 5mm 3pin LED lamp.
- Right angle design with mount feet.
LED HOUSING LEK2-5TW
FEATURES
SPECIFICATION
FOR Ø5 3PIN LED
FEATURES
- Stand LED lamp on circuit board.
- Pad LED with distance from circuit board.
- Suit for 5mm 3pin LED lamp.
- Right angle design with mount feet.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL
- BUILD-IN CLAMP FUNCTION
FOR Ø5 3PIN LED
| PART NO | A | B | C | D | PACKAGE |
| LEK2-5TW | 5.0 | 8.75 | Ø1.5~Ø1.6 | 3.0 | 1000 |
| LEK2-6TW | 6.0 | 9.95 | |||
| LEK2-7TW | 7.0 | 10.75 | Ø1.5~Ø1.6 | 3.0 | 500 |
| LEK2-8TW | 8.0 | 11.75 | |||
| LEK2-9TW | 9.0 | 12.75 | |||
| LEK2-11TW | 11.0 | 14.75 | |||
| LEK2-14TW | 14.0 | 17.75 | |||
| LEK2-15TW | 15.0 | 18.75 | |||
| LEK2-16TW | 16.0 | 19.75 | |||
| LEK2-17TW | 17.0 | 20.75 | |||
| LEK2-18TW | 17.5 | 21.75 | Ø1.2 | 3.0 | |
| LEK2-18LTW | 18.0 | 21.75 | Ø1.5~Ø1.6 | 3.0 | 500 |
| LEK2-19TW | 19.0 | 22.75 | |||
| LEK2-20TW | 20.0 | 23.75 | |||
| LEK2-11MTW | 11.5 | 15.45 | Ø1.2 | 2.5 | |
| LEN-05 | 5.0 | 8.75 | Ø1.0 | 3.0 | 1000 |
