Components & Accessories

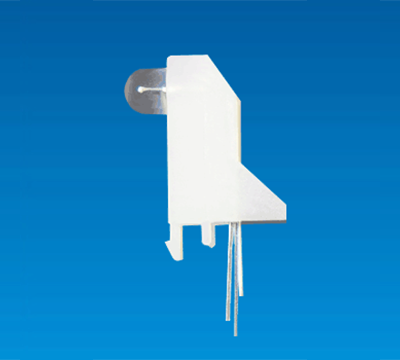

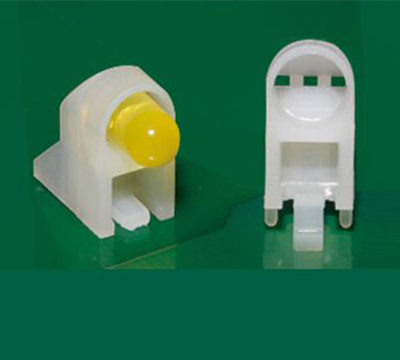

LED HOUSING LEK2-7TX
- Stand LED lamp on circuit board.
- Pad LED with distance from circuit board.
- Suit for 5mm 3pin LED lamp.
LED HOUSING LEK2-7TX
FEATURES
SPECIFICATION
FOR Ø5 3PIN LED
FEATURES
- Stand LED lamp on circuit board.
- Pad LED with distance from circuit board.
- Suit for 5mm 3pin LED lamp.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL
FOR Ø5 3PIN LED
| PART NO | A | B | C | D | PACKAGE |
| LEK2-7TX | 7.0 | 10.8 | Ø6.2 | 9.5 | 500 |
| LEK2-10TX | 10.0 | 13.8 | Ø6.0 | 12.1 | |
| LEK2-13TX | 13.5 | 17.3 | Ø6.0 | 12.1 |
