LED HOUSING QLT-6A
- Stand LED lamp on circuit board.
- Pad LED with distance from circuit board.
- Suit for both Ø5,2,3pin LED lamp.
- Right angle design with mount feet.
LED HOUSING QLT-6A
FEATURES
SPECIFICATION
FOR Ø5 2PIN & Ø5 3PIN LED
FEATURES
- Stand LED lamp on circuit board.
- Pad LED with distance from circuit board.
- Suit for both Ø5,2,3pin LED lamp.
- Right angle design with mount feet.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: BLACK
- BUILD-IN CLAMP FUNCTION
FOR Ø5 2PIN & Ø5 3PIN LED

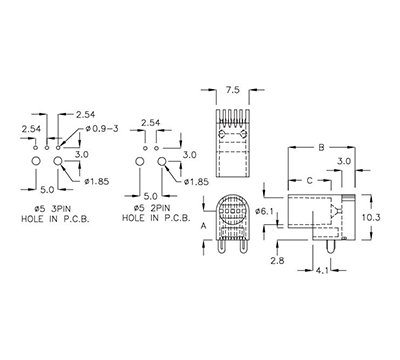

| PART NO | A | B | C | PACKAGE |
| QLT-6A | 6.55 | 14.0 | 8.6 | 500 |
| QLT-6C | 6.55 | 14.0 | 6.1 | 500 |
