Components & Accessories
LED HOUSING SLED-1
- To stand LED lamp on circuit board.
- Pads LED lamp with distance from circuit board.
- Suit for quadrate 2,3pin LED Lamps.
- Mount on Panel.

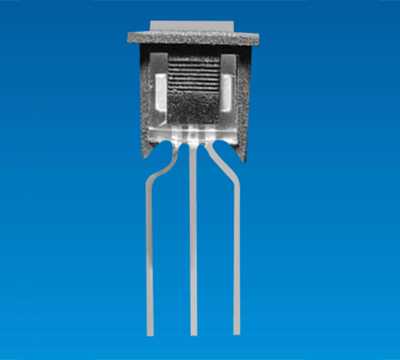

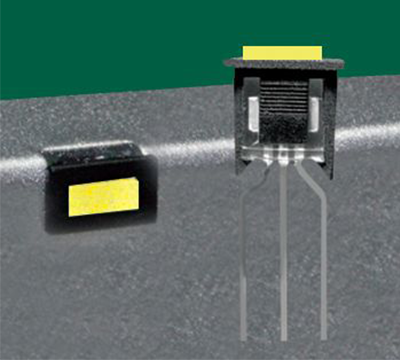

LED HOUSING SLED-1
FEATURES
SPECIFICATION
FOR QUADRATE 2PIN, 3PIN LED
FEATURES
- To stand LED lamp on circuit board.
- Pads LED lamp with distance from circuit board.
- Suit for quadrate 2,3pin LED Lamps.
- Mount on Panel.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: BLACK
FOR QUADRATE 2PIN, 3PIN LED
| PART NO | A | B | PACKAGE |
| SLED-1 | 5.2 | 7.6 | 2000 |
| SLED-2M | 6.2 | 8.6 | 2000 |
