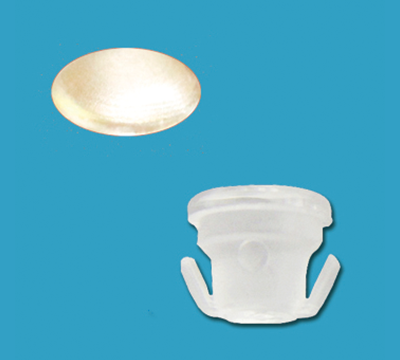

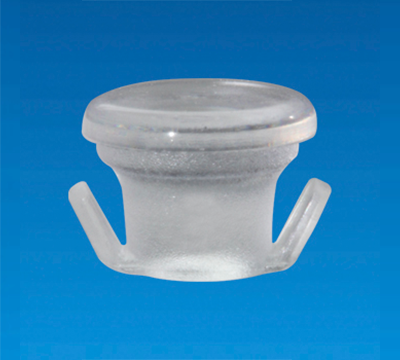

LIGHT PIPE HHP-04
- Perform as a cover and light transporter for LED lamp on the control panel.
- Easily snap the unit into the hole on panel to assemble.
- High light transmission capability.
LIGHT PIPE HHP-04
FEATURES
SPECIFICATION
FEATURES
- Perform as a cover and light transporter for LED lamp on the control panel.
- Easily snap the unit into the hole on panel to assemble.
- High light transmission capability.
SPECIFICATION
- MATERIAL: PC(UL)
- FLAME CLASS: 94V-2
- COLOR: CLEAR
| PART NO | A | HOLE IN CHASSIS |
T CHASSIS THICKNESS |
PACKAGE |
|---|---|---|---|---|
| HHP-04 | 4.5 | Ø5.0 | 1.0 | 1000 |
| HHP-4A | 4.9 | Ø5.0 | 1.2 | 1000 |
| HHP-4F | 3.8 | Ø5.0 | 0.8 | 1000 |
