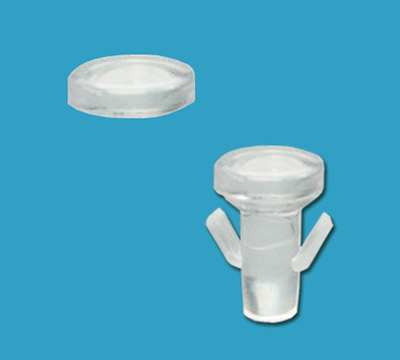

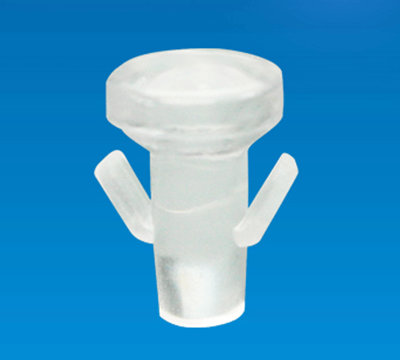

LIGHT PIPE HHP-09
- Perform as a cover and light transporter for LED lamp on the control panel.
- Easily snap the unit into the hole on panel to assemble.
- High light transmission capability.
LIGHT PIPE HHP-09
FEATURES
SPECIFICATION
FEATURES
- Perform as a cover and light transporter for LED lamp on the control panel.
- Easily snap the unit into the hole on panel to assemble.
- High light transmission capability.
SPECIFICATION
- MATERIAL: PC(UL)
- FLAME CLASS: 94V-2
- COLOR: CLEAR
| PART NO | Surface | A | B | C | HOLE IN CHASSIS |
T CHASSIS THICKNESS |
PACKAGE |
|---|---|---|---|---|---|---|---|
| HHP-09 | Polished | 5.5 | Ø3.8 | 1.0 | Ø3.2 | 0.8 | 1000 |
| HHP-9AC | Matt | 9.0 | Ø5.0 | 0.5 | Ø4.3 | 0.8 | 1000 |
