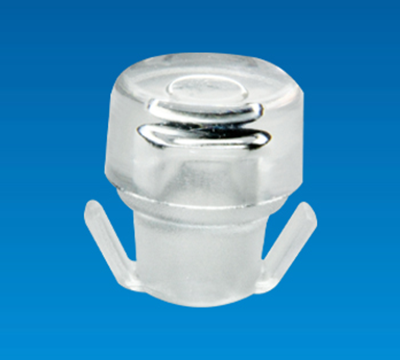

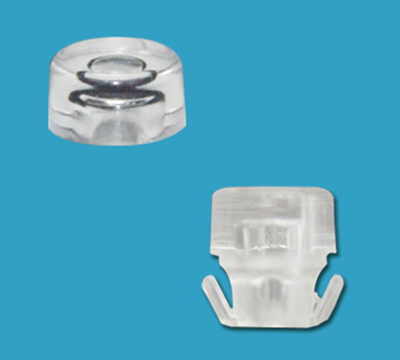

LIGHT PIPE HHP-4C
- Perform as a cover and light transporter for LED lamp on the control panel.
- Easily snap the unit into the hole on panel to assemble.
- High light transmission capability.
LIGHT PIPE HHP-4C
FEATURES
SPECIFICATION
FEATURES
- Perform as a cover and light transporter for LED lamp on the control panel.
- Easily snap the unit into the hole on panel to assemble.
- High light transmission capability.
SPECIFICATION
- MATERIAL: PC(UL)
- FLAME CLASS: 94V-2
- COLOR: CLEAR
| PART NO | Surface | A | B | C | HOLE IN CHASSIS |
T CHASSIS THICKNESS |
PACKAGE |
|---|---|---|---|---|---|---|---|
| HHP-4C | Polished | 6.5 | Ø5.6 | 3.0 | Ø5.0 | 0.8 | 1000 |
| HHP-11JC | Matt | 10.8 | Ø10.0 | 6.0 | Ø8.5 | 2.0 | 1000 |
