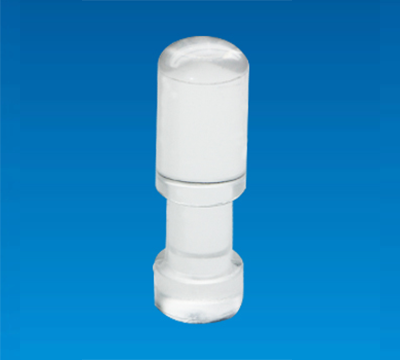

LIGHT PIPE LEAD-20
- Perform as a cover and light transporter for LED lamp on the control panel.
- Easily snap the unit into the hole on panel to assemble.
- High light transmission capability.

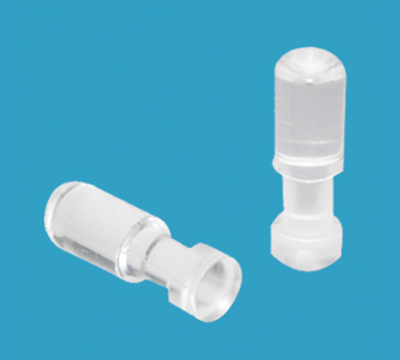

LIGHT PIPE LEAD-20
FEATURES
SPECIFICATION
FEATURES
- Perform as a cover and light transporter for LED lamp on the control panel.
- Easily snap the unit into the hole on panel to assemble.
- High light transmission capability.
SPECIFICATION
- MATERIAL: PC(UL)
- FLAME CLASS: 94V-2
- COLOR: CLEAR
| PART NO | A | B | C |
D |
E |
F |
G |
H | T | SURFACE | PACKAGE |
|---|---|---|---|---|---|---|---|---|---|---|---|
| LEAD-20 | Ø4.95 | Ø3.54 | Ø4.95 | 14.1 | 4.4 | 2.62 | Ø3.65 | 3.45 | 4.2 | Matt | 2000 |
| LEAD-20AC | Ø4.95 | Ø3.45 | Ø4.95 | 15.8 | 4.5 | 2.65 | Ø3.55 | 3.35 | 4.3 | Polished |
