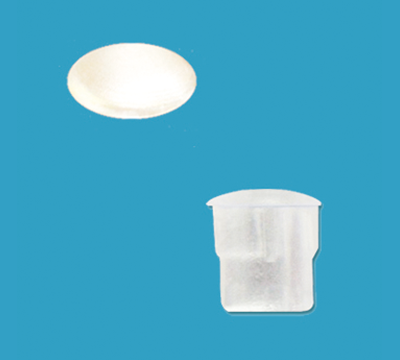

LIGHT PIPE LEAD-28
- Perform as a cover and light transporter for LED lamp on the control panel.
- Easily snap the unit into the hole on panel to assemble.
- High light transmission capability.

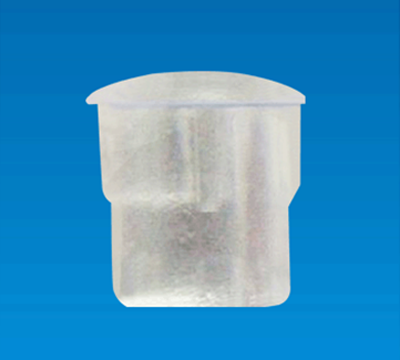

LIGHT PIPE LEAD-28
FEATURES
SPECIFICATION
FEATURES
- Perform as a cover and light transporter for LED lamp on the control panel.
- Easily snap the unit into the hole on panel to assemble.
- High light transmission capability.
SPECIFICATION
- MATERIAL: PC(UL)
- FLAME CLASS: 94V-2
- COLOR: CLEAR
| PART NO | A | B | C | D |
E |
T |
Surface | PACKAGE |
|---|---|---|---|---|---|---|---|---|
| LEAD-28 | Ø5.0 | 4.6 | 3.3 | 0.8 | Ø3.96 | ≧1.6 | Matt | 2000 |
| LEAD-28AM | Ø5.0 | 4.6 | 3.25 | 0.8 | Ø3.96 | ≧1.6 | Polished | |
| LEAD-4RK | Ø5.0 | 3.95 | 2.95 | 0.4 | Ø3.1 | ≧1.4 | Matt |
