Components & Accessories

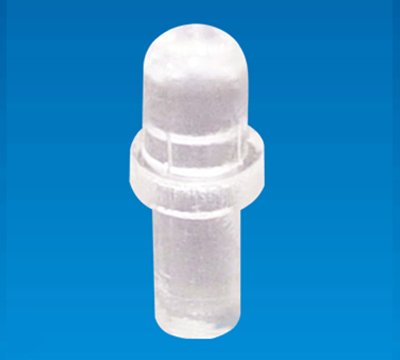

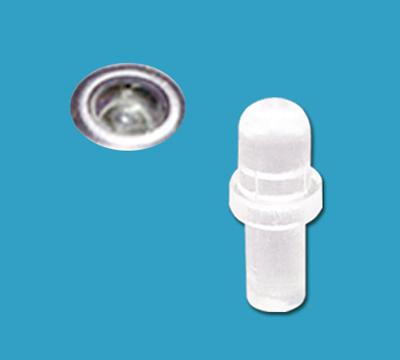

LIGHT PIPE LEAD-36
- Perform as a cover and light transporter for LED lamp on the control panel.
- Easily snap the unit into the hole on panel to assemble.
- High light transmission capability.
LIGHT PIPE LEAD-36
FEATURES
SPECIFICATION
FEATURES
- Perform as a cover and light transporter for LED lamp on the control panel.
- Easily snap the unit into the hole on panel to assemble.
- High light transmission capability.
SPECIFICATION
- MATERIAL: PC(UL)
- FLAME CLASS: 94V-2
- COLOR: CLEAR
| PART NO | A | B |
D |
T |
SURFACE |
PACKAGE |
|---|---|---|---|---|---|---|
| LEAD-36 | 5.1 | 1.3 | Ø3.1 | 1.6 | Matt | 1000 |
| LEAD-36PQ | 5.1 | 1.3 | Ø3.0 | 1.6 | Polished | |
| LEAD-37 | 1.9 | 1.3 | Ø3.1 | 1.6 | Matt |
