Components & Accessories

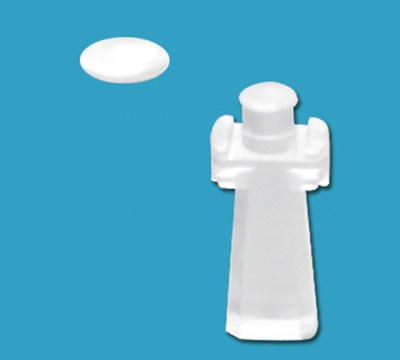

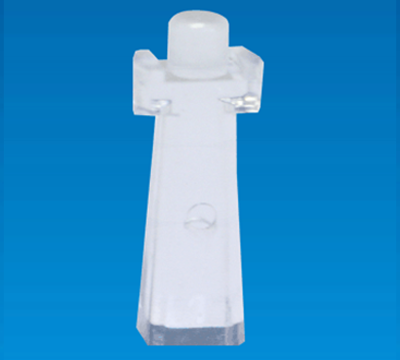

LIGHT PIPE LEAD-40
- Perform as a cover and light transporter for LED lamp on the control panel.
- Easily snap the unit into the hole on panel to assemble.
- High light transmission capability.
LIGHT PIPE LEAD-40
FEATURES
SPECIFICATION
FEATURES
- Perform as a cover and light transporter for LED lamp on the control panel.
- Easily snap the unit into the hole on panel to assemble.
- High light transmission capability.
SPECIFICATION
- MATERIAL: PC(UL)
- FLAME CLASS: 94V-2
- COLOR: CLEAR
| PART NO | A | B | C | D | PACKAGE |
|---|---|---|---|---|---|
| LEAD-40 | 10.1 | 2.0 | 2.5 | 3.0 | 2000 |
| LEAD-51 | 12.6 | 2.0 | 2.5 | 4.1 | |
| LEAD-51K | 13.5 | 2.0 | 1.6 | 3.0 |
