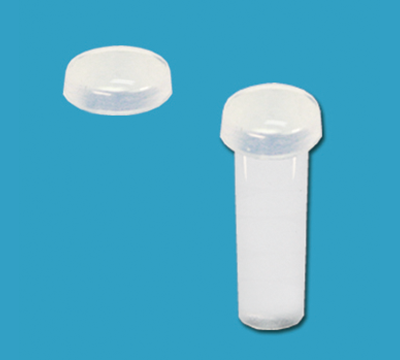

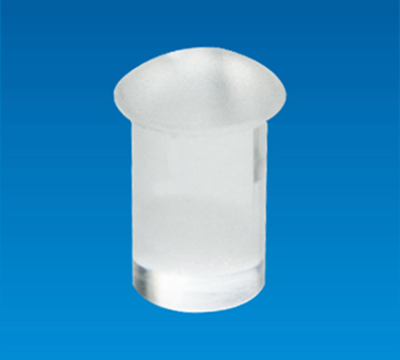

LIGHT PIPE LEAD-9HP
- Perform as a cover and light transporter for LED lamp on the control panel.
- Easily snap the unit into the hole on panel to assemble.
- High light transmission capability.
LIGHT PIPE LEAD-9HP
FEATURES
SPECIFICATION
FEATURES
- Perform as a cover and light transporter for LED lamp on the control panel.
- Easily snap the unit into the hole on panel to assemble.
- High light transmission capability.
SPECIFICATION
- MATERIAL: PC(UL)
- FLAME CLASS: 94V-2
- COLOR: CLEAR
| PART NO | A | B | C |
D HOLE |
T CHASSIS |
SURFACE | FORM | PACKAGE |
|---|---|---|---|---|---|---|---|---|
| LEAD-3TM | Ø3.3 | 3.95 | 0.75 | Ø3.0 | >1.0 | Matt | 1 | 2000 |
| LEAD-9HP | Ø3.25 | 8.55 | 1.55 | Ø2.95 | >1.8 | Polished | 3 | |
| LEAD-18KT | Ø3.8 | 5.5 | 1.0 | Ø3.1 | >1.6 | Polished | 1 | |
| LEAD-18 | Ø3.8 | 5.5 | 1.0 | Ø3.2 | >1.8 | Matt | 1 | |
| LEAD-30 | Ø3.8 | 4.1 | 1.0 | Ø3.1 | >1.4 | Matt | 1 | |
| LEAD-30FQ | Ø3.8 | 3.5 | 1.0 | Ø3.1 | >1.4 | Matt | 1 | |
| LEAD-30M | Ø3.8 | 9.7 | 1.2 | Ø3.1 | >1.0 | Polished | 2 | |
| LEAD-39 | Ø3.8 | 24.8 | 1.2 | Ø3.1 | >1.0 | Matt | 2 | 1000 |
