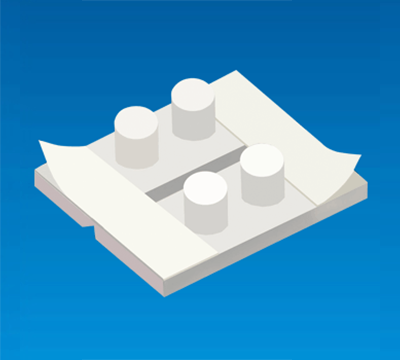

LIGHT PIPE LEGD-4C
- Perform as a cover and light transporter for LED lamp on the control panel.
- Easily snap the unit into the hole on panel to assemble.
- High light transmission capability.
LIGHT PIPE LEGD-4C
FEATURES
SPECIFICATION
FEATURES
- Perform as a cover and light transporter for LED lamp on the control panel.
- Easily snap the unit into the hole on panel to assemble.
- High light transmission capability.
SPECIFICATION
- MATERIAL: PC(UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL
- ADHESIVE TAPE: 3M OR EQUIVALENT

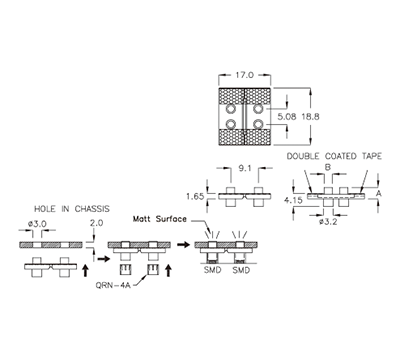

| PART NO | A | B | PACKAGE |
|---|---|---|---|
| LEGD-4C | 3.7 | 4xØ2.7 | 1000 |
| LEGD-4QN | 3.3 | 4xØ2.7 | 1000 |
