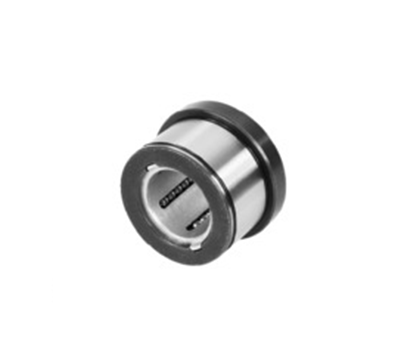

Linear ball bearing, flush location head
- Hasco Z1100/l1xd1
- max. 180°C
- 60-62 HRC
- 1.7131 / 3.2315

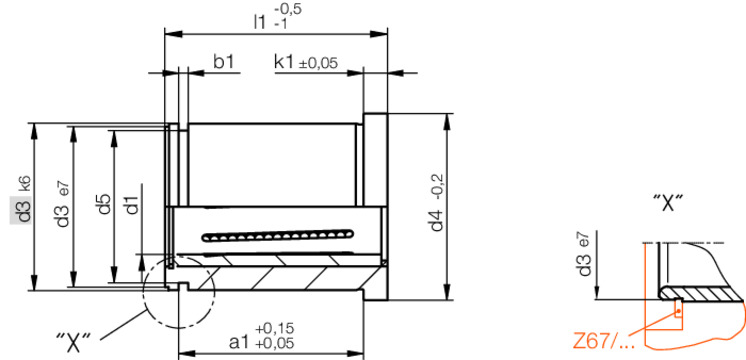

Linear ball bearing, flush location head
| k1 | a1 | b1 | d5 | d4 | d3 | l1 | d1 | Product |
|---|---|---|---|---|---|---|---|---|
| 6 | 18,3 | 1,3 | 19 | 25 | 20 | 27 | 9 |
Z1100/27x9
|
| 6 | 27,3 | 1,3 | 19 | 25 | 20 | 36 | 9 |
Z1100/36x9
|
| 6 | 37,3 | 1,3 | 19 | 25 | 20 | 46 | 9 |
Z1100/46x9
|
