Mold Parts

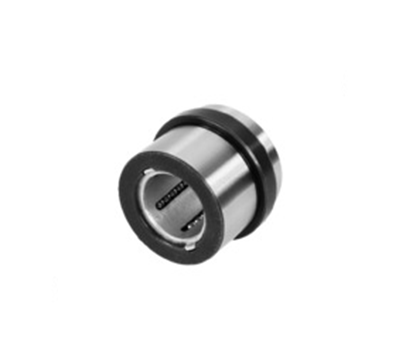

Linear ball bearing, stepped location head
- Hasco Z1000/l2xd1
- max. 180°C
- 60-62 HRC
- 1.7131

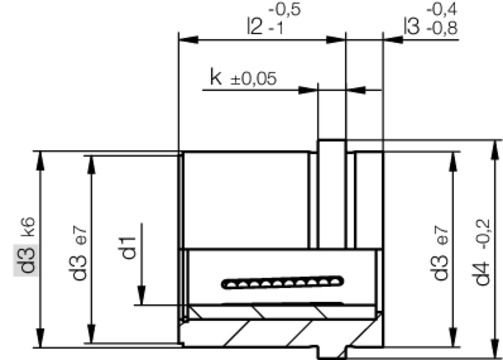

Linear ball bearing, stepped location head
| k1 | l3 | d4 | d3 | l2 | d1 | Product |
|---|---|---|---|---|---|---|
| 6 | 5 | 25 | 20 | 22 | 9 |
Z1000/22x9
|
| 6 | 5 | 25 | 20 | 27 | 9 |
Z1000/27x9
|
| 6 | 5 | 25 | 20 | 36 | 9 |
Z1000/36x9
|
| 6 | 5 | 25 | 20 | 46 | 9 |
Z1000/46x9
|
