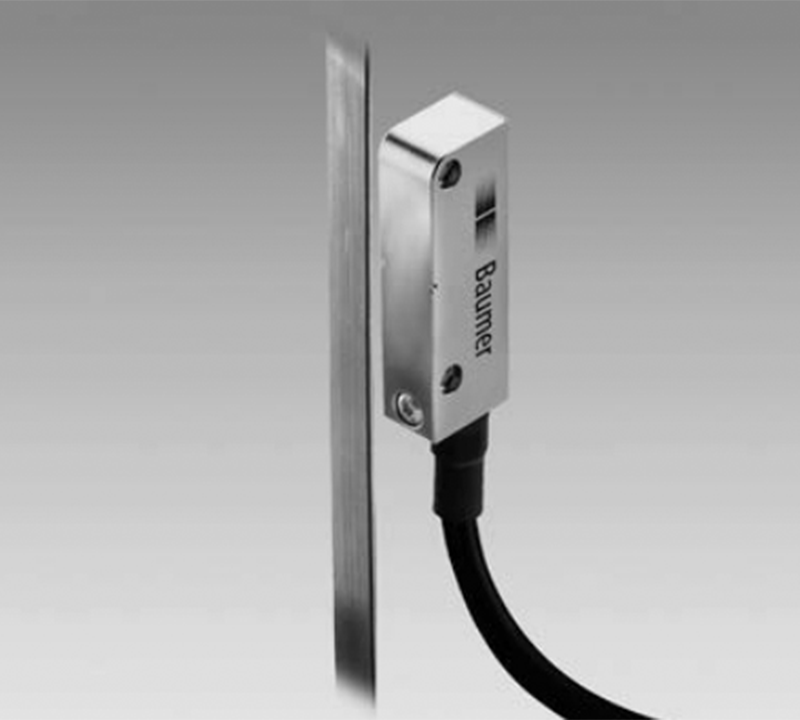

Linear encoders without bearings incremental Baumer MIL10
- Sensor head with magnetic tape
- Robust magnetic sensing method
- Output signals A 90° B with index signal
- Output circuits: HTL/push-pull and TTL/RS422
- Resolution up to 5 µm (4-times evaluation)
- Non-contact, wear-free sensing system
- High resistance to dirt and vibrations
| Technical data - electrical ratings | |
|---|---|
| Short-circuit proof | Yes |
| Initializing time | ≤50 ms after power on (see general informations) |
| Resolution | 5 µm (4-times evaluation) 10 µm (4-times evaluation) 25 µm (4-times evaluation) |
| Interpolation | 20-fold, 50-fold, 100-fold |
| Output signals | A+, B+, R+, A-, B-, R- |
| Reference signal | Index signal, width 90° |
| Output frequency | ≤350 kHz |
| System accuracy | ±0.02 mm + 0.04 mm x magnetic tape length (m) |
| Duty cycle | 40...60% |
| Sensing method | Magnetic |
| Output stages | HTL/push-pull, TTL/RS422 |
| Interference immunity | DIN EN 61000-6-2 |
| Emitted interference | DIN EN 61000-6-4 |
| Approvals | CE, UL |
| Technical data - electrical ratings (HTL) | |
| Voltage supply | 10...30 VDC |
| Reverse polarity protection | Yes |
| Consumption typ. | 20 mA (w/o load) |
| Technical data - electrical ratings (TTL) | |
| Voltage supply | 5 VDC ±5% |
| Consumption typ. | 30 mA (w/o load) |
| Recommended cable termination | On control side each channel pair 120 Ohm |
| Technical data - mechanical design | |
| Dimensions (sensor head) | 10 x 15 x 45.5 mm |
| Protection DIN EN 60529 | IP 66, IP 67 |
| Movement speed | <5 m/s (resolution 5 µm) <10 m/s (resolution 10 µm) <25 m/s (resolution 25 µm) |
| Working distance | 0.1...0.6 mm |
| Material | Housing: zinc diecast, plated |
| Operating temperature | -40...+85 °C |
| Relative humidity | EN 60068-2-78:2010 EN 60068-2-30:2005 93% condensation permitted |
| Resistance | DIN EN 60068-2-6 Vibration 30 g, 10-2000 Hz DIN EN 60068-2-27 Shock 500 g, 6 ms |
| Weight approx. | 130 g |
| Connection | Cable 2 m Cable 0.3 m with connector M12 |
