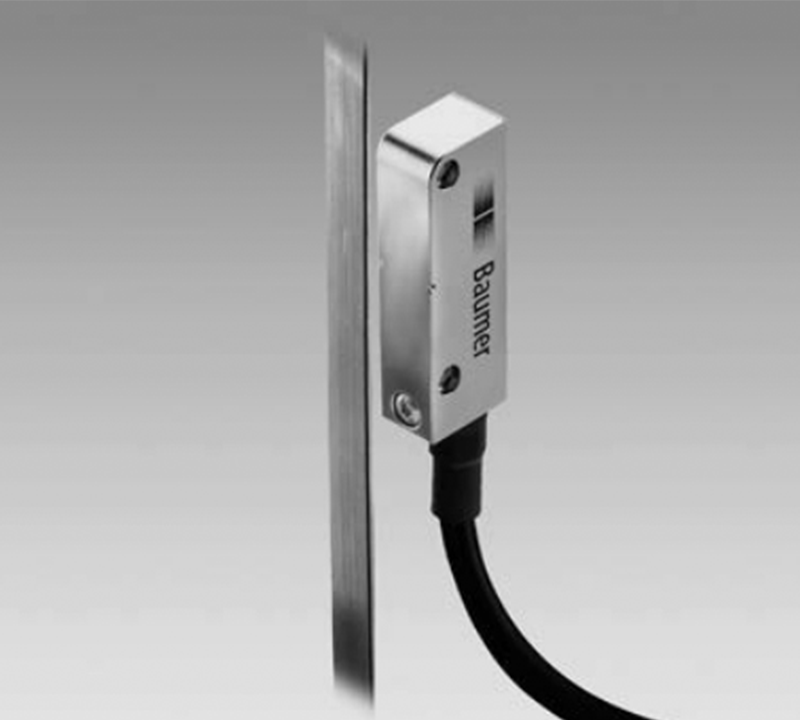

Linear Position Sensor Baumer MIL10-M402.00150
- Sensor head with magnetic tape
- Robust magnetic sensing method
- Output signals A 90° B with index signal
- Output circuits: HTL/push-pull and TTL/RS422
- Resolution up to 5 µm (4-times evaluation)
- Non-contact, wear-free sensing system
- High resistance to dirt and vibrations
| Technical Data - Electrical Ratings | |
|---|---|
| Short-circuit Proof | Yes |
| Initializing Time | ≤50 ms after power on (see general information) |
| Resolution | 5 µm (4-times evaluation), 10 µm (4-times evaluation), 25 µm (4-times evaluation) |
| Interpolation | 20-fold, 50-fold, 100-fold |
| Output Signals | A+, B+, R+, A-, B-, R- |
| Reference Signal | Index signal, width 90° |
| Output Frequency | ≤350 kHz |
| System Accuracy | ±(0.02 mm + 0.04 mm × magnetic tape length (m)) |
| Duty Cycle | 40...60 % |
| Sensing Method | Magnetic |
| Output Stages | HTL/push-pull, TTL/RS422 |
| Interference Immunity | DIN EN 61000-6-2 |
| Emitted Interference | DIN EN 61000-6-4 |
| Approvals | CE, UL |
| Technical Data - Electrical Ratings (HTL) | |
| Voltage Supply | 10...30 VDC |
| Reverse Polarity Protection | Yes |
| Consumption Typ. | 20 mA (w/o load) |
| Technical Data - Electrical Ratings (TTL) | |
| Voltage Supply | 5 VDC ±5 % |
| Consumption Typ. | 30 mA (w/o load) |
| Recommended Cable Termination | On control side each channel pair 120 Ohm |
| Technical Data - Mechanical Design | |
| Dimensions (Sensor Head) | 10 x 15 x 45.5 mm |
| Protection DIN EN 60529 | IP 66, IP 67 |
| Movement Speed | <5 m/s (resolution 5 µm), <10 m/s (resolution 10 µm), <25 m/s (resolution 25 µm) |
| Working Distance | 0.1...0.6 mm |
| Material | Housing: zinc diecast, plated |
| Operating Temperature | -40...+85 °C |
| Relative Humidity | EN 60068-2-78:2010, EN 60068-2-30:2005, 93 % condensation permitted |
| Resistance | DIN EN 60068-2-6 Vibration 30 g, 10-2000 Hz, DIN EN 60068-2-27 Shock 500 g, 6 ms |
| Weight Approx. | 130 g |
| Connection | Cable 2 m, Cable 0.3 m with connector M12 |
