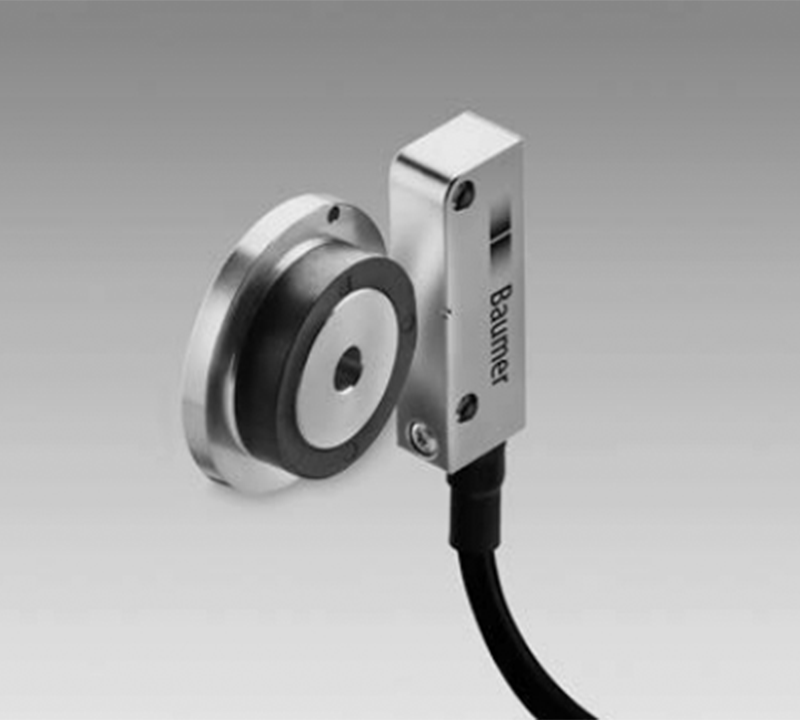

Sensor
| Technical Data - Electrical Ratings | |
|---|---|
| Short-circuit proof | Yes |
| Initializing time | ≤50 ms after power on (see general informations) |
| Resolution | 5 μm (4-times evaluation) 10 μm (4-times evaluation) 25 μm (4-times evaluation) |
| Interpolation | 20-fold, 50-fold, 100-fold |
| Output signals | A+, B+, R+, A-, B-, R- |
| Reference signal | Index signal, width 90° |
| Output frequency | ≤350 kHz |
| System accuracy | ±(0.02 mm + 0.04 mm × magnetic tape length (m)) |
| Duty cycle | 40...60 % |
| Sensing method | Magnetic |
| Output stages | HTL/push-pull TTL/RS422 |
| Interference immunity | DIN EN 61000-6-2 |
| Emitted interference | DIN EN 61000-6-4 |
| Approvals | CE, UL |
| Technical Data - Electrical Ratings (HTL) | |
| Voltage supply | 10...30 VDC |
| Reverse polarity protection | Yes |
| Consumption typ. | 20 mA (w/o load) |
| Technical Data - Electrical Ratings (TTL) | |
| Voltage supply | 5 VDC ±5 % |
| Consumption typ. | 30 mA (w/o load) |
| Recommended cable termination | On control side each channel pair 120 Ohm |
| Technical Data - Mechanical Design | |
| Dimensions (sensor head) | 10 x 15 x 45.5 mm |
| Protection DIN EN 60529 | IP 66, IP 67 |
| Movement speed | <5 m/s (resolution 5 μm) <10 m/s (resolution 10 μm) <25 m/s (resolution 25 μm) |
| Working distance | 0.1...0.6 mm |
| Material | Housing: zinc diecast, plated |
| Operating temperature | -40...+85 °C |
| Relative humidity | EN 60068-2-78:2010 EN 60068-2-30:2005 93 % condensation permitted |
| Resistance | DIN EN 60068-2-6 Vibration 30 g, 10-2000 Hz DIN EN 60068-2-27 Shock 500 g, 6 ms |
| Weight approx. | 130 g |
| Connection | Cable 2 m Cable 0.3 m with connector M12 |
