Locating unit, conical

Hasco Z051/d1
54 HRC
1.2067
DIN ISO 8406

add to cart Inquiry Now

Locating unit, conical
255231637464849590-DESKTOP-DEFAULT

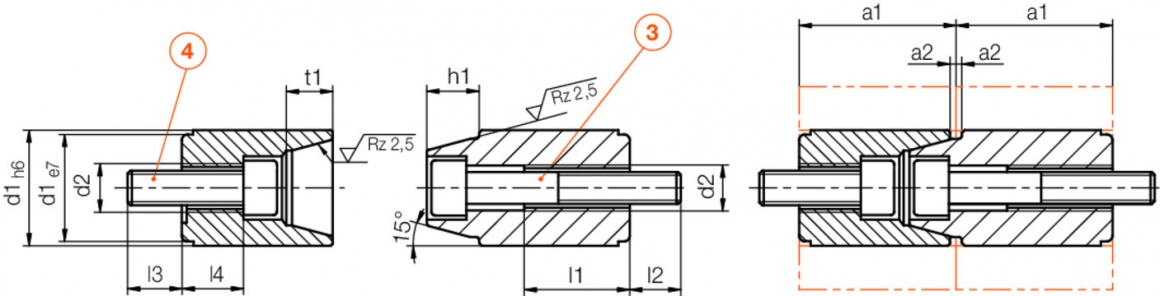

Pos4	Pos3	h1	t1	a2	a1	l4	l3	l2	l1	d2	d1	Product
Z31/3x12	Z31/3x20	4	5	0,5	11,5	3,5	7,5	8	6,6	M4	10	Z051/10
Z31/3x16	Z31/3x25	4,5	5	1	17	8,5	7,5	8	9,6	M4	12	Z051/12
Z31/4x14	Z31/4x25	6	7	1	17	6	8	7,5	12,4	M5	14	Z051/14
Z31/4x14	Z31/4x25	6	7	1	17	5,8	8	7,5	12,4	M5	16	Z051/16
Z31/6x20	Z31/6x40	9	10	1	27	10,6	9,5	12	19,7	M8	20	Z051/20
Z31/6x20	Z31/6x40	10	11	1	27	9,2	11	11	19,7	M8	25	Z051/25
Z31/6x20	Z31/6x40	10	11	1	27	9,2	11	11	19,7	M8	26	Z051/26
Z31/8x25	Z31/8x55	14	16	1	36	12,2	13	15	25	M10	30	Z051/30
Z31/8x25	Z31/8x55	14	16	1	36	12,2	13	15	25	M10	32	Z051/32
Z31/8x30	Z31/8x70	18	20	1	46	16,8	13	16	27	M10	42	Z051/42

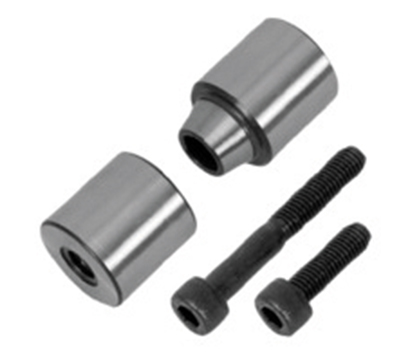

The HASCO locating unit Z 051/. . . is used for centring mould plates to prevent damage to cavity inserts. It reliably absorbs any transverse forcesthat develop in the mould via conicalsurfaces.

Interchangeable parts
Single parts Z 0511/. . . and Z 0512 /. . . are available ex stock
Limited height tolerance
Simple screwing from the mould parting line and from the rear is possible
All functional surfaces are ground
Screws are included with the package
Fast removal with extraction thread
Intermediate sizes prevent undesired rotation
Geared to distance discs Z 055 /. . . possible
