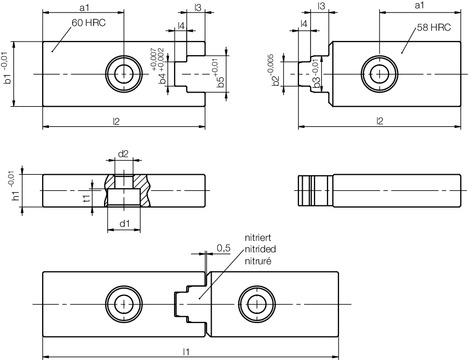

The locating unit with pre-centering Z09/... for high-precision items, guides and centres precisely where it matters: in the cavity.Ideal for high-precision tools, the Z09/... compensates for tolerances and heat distortions between the mould plate and the mould insert.
High-precision pre-centring and definitive centring close to the cavity
Ideal for floating inserts
Thermal expansion is absorbed

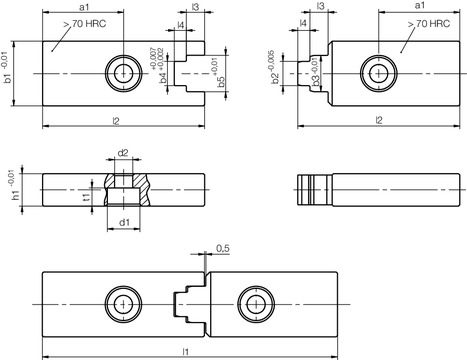

Type 2 and 4 with DLC coating for optimum slide properties and maximum corrosion resistance
