Locating unit, DLC, with pre-centering
- Hasco Z09/b1xh1xl1/Typ
- 1.2379
- coated with DLC

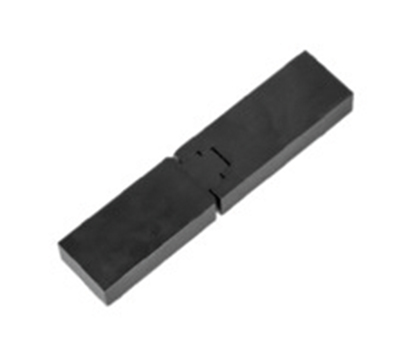

Locating unit, DLC, with pre-centering

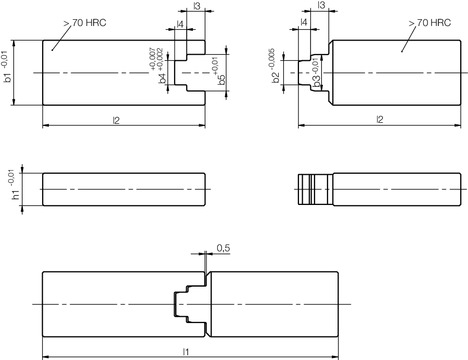

| b5 | b4 | b3 | b2 | l4 | l3 | l2 | b1 | h1 | l1 | Typ | Product |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 9 | 6 | 8,97 | 6 | 3 | 4,5 | 40 | 16 | 8 | 73 | 4 |
Z09/16x8x73/4
|
| 12 | 9 | 11,97 | 9 | 5 | 6,5 | 60 | 20 | 12 | 109 | 4 |
Z09/20x12x109/4
|
The locating unit with pre-centering Z09/... for high-precision items, guides and centres precisely where it matters: in the cavity.Ideal for high-precision tools, the Z09/... compensates for tolerances and heat distortions between the mould plate and the mould insert.
- High-precision pre-centring and definitive centring close to the cavity
- Ideal for floating inserts
- Thermal expansion is absorbed
- Type 2 and 4 with DLC coating for optimum slide properties and maximum corrosion resistance
- Ideal for use with foodstuff and medical products
- Type 3 and 4 without holes
- Flexible in use
- Position of screw joints can be freely selected
