    HomeMetal & PlasticsMold PartsCentering Elements/ Square

    Mold Parts

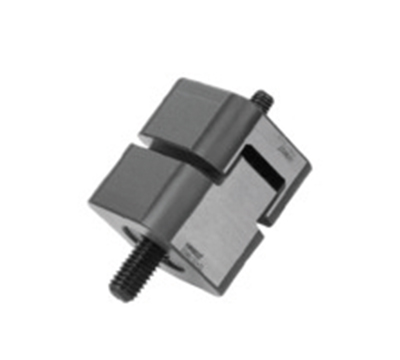

    Locating unit, rectangular

    • Hasco Z080/a1xb1
    • 53 HRC
    • 1.2343
    add to cart Inquiry Now
    Locating unit, rectangular

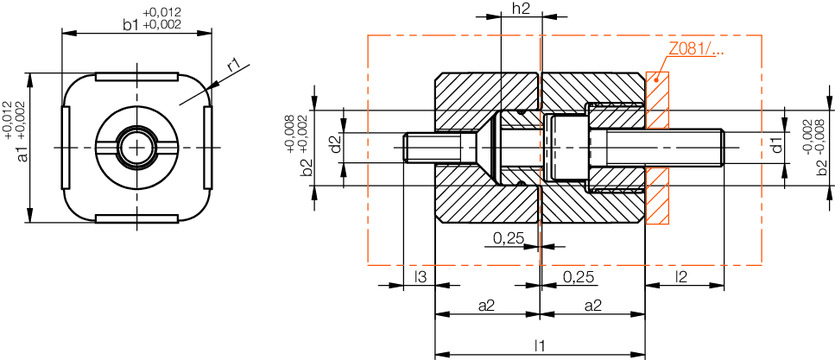

    254961637464928881-DESKTOP-DEFAULT

    r1 h2 a2 b2 l3 l2 l1 d2 d1 a1 b1 Product
    3 4,5 12 8 3 8 24 M3 M3 16 16
    Z080/16x16
    4 5,5 14 10 4 10 28 M4 M5 20 20
    Z080/20x20
    5 7,5 16 12 8 13 32 M5 M6 25 25
    Z080/25x25
    6 9,5 18 16 12 15 36 M6 M8 32 32
    Z080/32x32
    6 11,5 22,5 20 14 17 45 M8 M10 40 40
    Z080/40x40

    The rectangular locating unit Z 080 /. . . is used for the precise centring of mould plates in injection moulding tools and diecasting moulds.


    • Tolerance the same for all sizes (tolerance 0.004 - 0.016 mm)
    • Maintenance-friendly with lubrication grooves
    • Elements can be easily mounted from the parting surface
    • Precise, flat mould centring
    • Locking to prevent transversal forces in the mould
    • Short guidance
    • Identical in construction to Z 082 /. . .
    • Coordinated to distance ring Z 081/. . .
    • Available in 4 sizes
