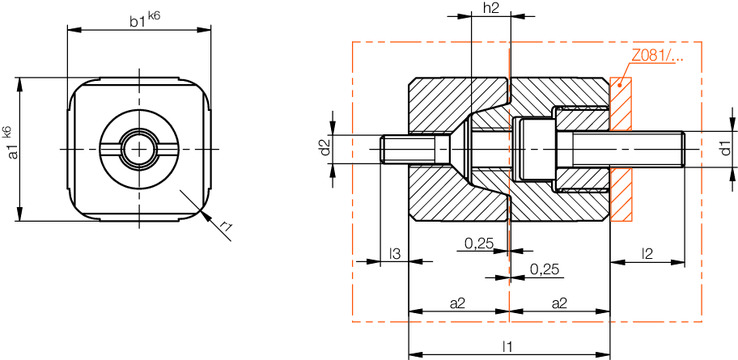

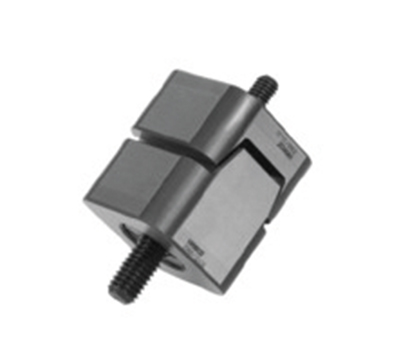

The locating unit Z 060 /. . . has been designed for the accurate centring ofmould plates in injection moulding toolsand diecasting moulds. The angular form simplifies coordinationin the mould and an additional dowelpin is not required.
Elements can be easily installed from the parting surface
Coordinated to distance ring Z 081/. . .
Precise conical mould centring
Locking to prevent transversal forces in the mould
