Long Range Distance Sensors SICK Dx100 DL100 Pro
Type:DL100-21AA2103
Part No.:1052688
Part No.:1052688

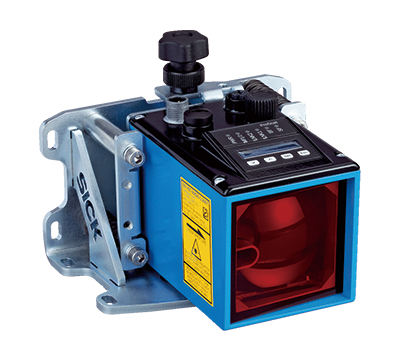

Long Range Distance Sensors SICK Dx100 DL100 Pro DL100-21AA2103
Mechanics/electronics
Performance
Interfaces
Ambient data
Classifications
Mechanics/electronics
| Supply voltage Vs | DC 18 V ... 30 V, limit values |
| Ripple | 5 Vpp 1) |
| Initialization time | Typ. 1.5 s 2) |
| Housing material | Metal (Aluminum die cast) |
| Window material | Plastic (PMMA) |
| Connection type | Male connector, M12, SPEEDCON™ compatible |
| Indication | 6 digit 5 x 7 dot matrix display, LEDs |
| Weight | Approx. 800 g (with mounting bracket: approx. 1,600 g) |
| Current consumption | At 24 V DC < 250 mA |
| Dimensions (W x H x D) | 69.4 mm x 82.5 mm x 100.2 mm |
| Modulation frequency | Fix |
| Enclosure rating | IP65 |
| Protection class | III |
- 1) May not fall short of or exceed VS tolerances.
- 2) After loss of reflector < 40 ms.
Performance
| Measuring range | 0.15 m ... 100 m, on “diamond grade” reflective tape |
| Target | Reflector |
| Resolution | 0.1 mm, 0.125 mm, 1 mm, 10 mm, 100 mm |
| Repeatability | 0.5 mm 1) |
| Accuracy | ± 2 mm 2) |
| Response time | 2 ms |
| Measurement cycle time | 1 ms |
| Output time | 1 ms |
| Light source | Laser, red 3) visible red light |
| Laser class | 2, complies with 21 CFR 1040.10 and 1040.11 except for the conformance according to “Laser Notice No. 50” from June 24, 2007 (IEC 60825-1:2014, EN 60825-1:2014) |
| Typ. light spot size (distance) | 5 mm + (2 mm x distance in m) |
| Max. movement speed | 15 m/s |
| Acceleration (max.) | ≤ 15 m/s² |
- 1) Statistical error 1 σ, environmental conditions constant, min. warm-up time 10 min.
- 2) From 150 mm ... 180 mm measuring range the accuracy can reach ± 4 mm.
- 3) Average service life: 100,000 h at TU = +25 °C.
Interfaces
|
|||||||||||||||||||
|
|||||||||||||||||||
| Multifunctional input (MF) | 1 x MF1 3) | ||||||||||||||||||
- 1) HIGH = > VS - 3 V / LOW = < 2 V.
- 2) Max. 100 nF/20 mH.
- 3) HIGH > 12 V / LOW < 3 V.
Ambient data
| Electromagnetic compatibility (EMC) | EN 61000-6-2, EN 61000-6-4 1) |
| Ambient temperature, operation |
–20 °C ... +55 °C 2) –20 °C ... +75 °C, operation with cooling case 2) |
| Ambient temperature, storage | –40 °C ... +75 °C |
| Effect of air pressure | 0.3 ppm/hPa |
| Effect of air temperature | 1 ppm/K |
| Temperature drift | Typ. 0.1 mm/K |
| Typ. Ambient light immunity | ≤ 100,000 lx |
| Mechanical load |
Shock: (EN 600 68-2-27) Sine: (EN 600 68-2-6) Noise: (EN 600 68-2-64) |
- 1) This is a Class A device. This device can cause radio interference in living quarters.
- 2) Temperatures < –10 °C require warm-up time of typ. 7 minutes.
Classifications
| ECl@ss 5.0 | 27270801 |
| ECl@ss 5.1.4 | 27270801 |
| ECl@ss 6.0 | 27270801 |
| ECl@ss 6.2 | 27270801 |
| ECl@ss 7.0 | 27270801 |
| ECl@ss 8.0 | 27270801 |
| ECl@ss 8.1 | 27270801 |
| ECl@ss 9.0 | 27270801 |
| ECl@ss 10.0 | 27270801 |
| ECl@ss 11.0 | 27270801 |
| ETIM 5.0 | EC001825 |
| ETIM 6.0 | EC001825 |
| ETIM 7.0 | EC001825 |
| ETIM 8.0 | EC001825 |
| UNSPSC 16.0901 | 41111613 |
