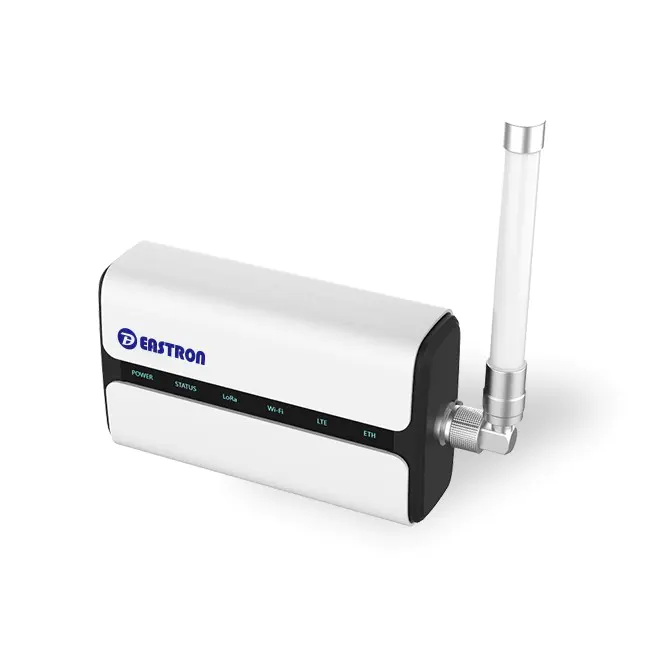

Lorawan Gateway For Iot Solutions Eastron ESP-65

Hardware System

CPU

Quad-core 1.5 GHz, 64-bit ARM Cortex-A53

Memory

512 MB DDR4 RAM

Flash

8 GB eMMC

LoRaWAN®

Antenna

Fully Integrated Internal Antenna (Optional: 1 × 50 Ω N-Female External Antenna Connector)

Channel

8

Frequency Band

CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923

Sensitivity

-140dBm Sensitivity @292bps

Output Power

27dBm Max

Protocol

V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class C

Ethernet Interface

Port

1 × RJ45 (PoE PD support)

Physical Layer

10/100/1000 Base-T (IEEE 802.3)

Data Rate

Rate 10/100/1000 Mbps (Auto-Sensing)

Interface

Auto MDI/MDIX

Mode

Full or Half Duplex (Auto-Sensing)

Wi-Fi

Antenna

Fully Integrated and Internal Antenna

Standards

IEEE 802.11 b/g/n

Tx Power

802.11b: 18 dBm +/-2.0 dBm (11 Mbps)

802.11g: 15 dBm +/-2.0 dBm (6 Mbps)

802.11g: 15 dBm +/-2.0 dBm (54 Mbps)

802.11n@2.4 GHz: 14 dBm +/-2.0 dBm (MCS0_HT20)

802.11n@2.4 GHz: 14 dBm +/-2.0 dBm (MCS7_HT20)

802.11n@2.4 GHz: 13 dBm +/-2.0 dBm (MCS0_HT40)

802.11n@2.4 GHz: 13 dBm +/-2.0 dBm (MCS7_HT40)

Cellular Interface (Optional)

Antenna

Fully Integrated and Internal Antenna

SIM Slot

1

Software

Network Protocols

PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS,HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, etc.

VPN Tunnel

OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN

Access Authentication

CHAP/PAP/MS-CHAP/MS-CHAPV2

Firewall

ACL/DMZ/Port Mapping/MAC Binding/URL Filter

Management

Web, CLI, SMS, On-demand dial up, DeviceHub, Milesight IoT Cloud

Reliability

WAN Failover

Power Supply and Consumption

Power Supply

1. DC Jack Connector for 9-24 VDC power supply

2. 1 × 802.3 af PoE input

Consumption

≤ 4.2W

Physical Characteristics

Ingress Protection

Protection IP65

Dimensions

180 x 110 x 56.5 mm

Mounting

Desktop, Wall or Pole Mounting

Others

Reset Button

1 × RST

Console Port

1 × Type-C Port

LED Indicators

1 × POWER, 1 × STATUS, 1 × LoRa, 1 × Wi-Fi, 1 × LTE, 1 × ETH

Built-in

Watchdog, RTC, Timer

Certification

CE, FCC

Environmental

Operating Temperature

-40°C to +70°C (-40℉ to +158℉)

Reduced Cellular Performance Above 60°C

Storage Temperature

-40°C to +85°C (-40℉ to +185℉)

Ethernet Isolation

1.5 kV RMS

Relative Humidity

0% to 95% (non-condensing) at 25°C/77℉
