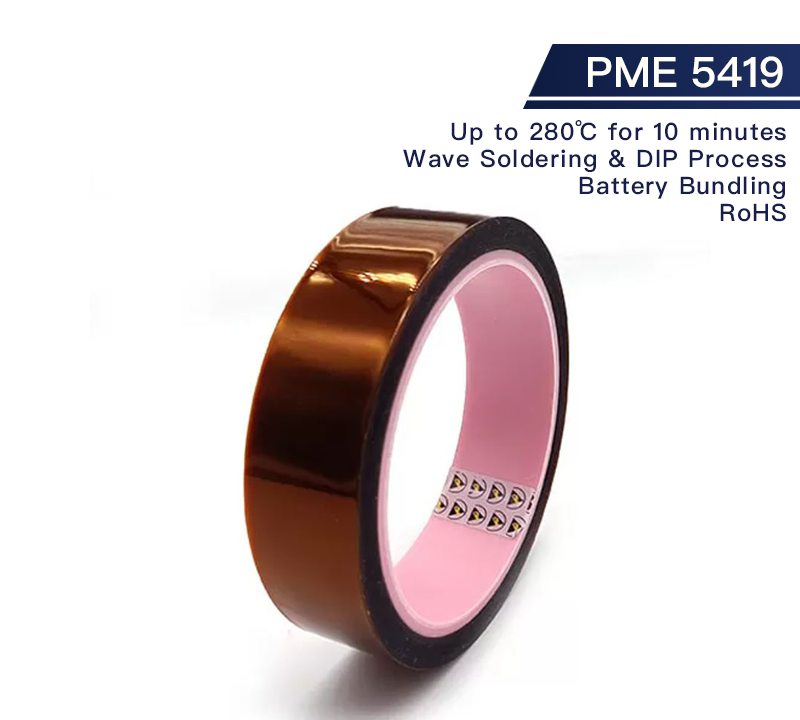

Low Static Polyimide Film Tape
- PME 5419 is a polyimide film backed silicone adhesive tape with heat resistance and low static discharge properties.
- Masking for printed circuit boards during wave solder or solder dip process.
- Masking contacts during spray painting, powder coating & solder coating.
- Bundling of transformer, motor, battery & electronic components for insulation purpose.
Features
- Resistant high temperature up to 280℃ for 10 minutes
- Excellent tensile strength & Elongation
- RoHS Compliant
Typical Physical Properties and Performance Characteristics
|
Item |
Typical Value |
|
|
Imperial |
Metric |
|
|
Backing |
1.0mil |
0.025mm |
|
Total Thickness |
2.2mil |
0.055±0.005mm |
|
Tack |
/ |
≥26(J.DOW/#) |
|
Adhesion to Steel |
0.91～1.37lbs/in |
4～6N/25mm |
|
Tensile Strength |
≥20lbs/in |
≥3.5(KN/M) |
|
Elongation |
≥45% |
≥45% |
|
Surface Resistance |
106~8ohms |
106~8ohms |
|
Static Discharge (Removal from roll) |
<100V |
<100V |
|
Maximum Operating Temperature |
536℉ |
280℃ |
Product Construction/Material Description
|
Part No. |
Description |
Length/m |
Width/mm |
|
PME54190333 |
Low Static Polyimide Film Tape |
33 |
3 |
|
PME54190433 |
Low Static Polyimide Film Tape |
33 |
4 |
|
PME54190533 |
Low Static Polyimide Film Tape |
33 |
5 |
|
PME54190733 |
Low Static Polyimide Film Tape |
33 |
7 |
|
PME54190933 |
Low Static Polyimide Film Tape |
33 |
9 |
|
PME54191033 |
Low Static Polyimide Film Tape |
33 |
10 |
|
PME54191233 |
Low Static Polyimide Film Tape |
33 |
12 |
|
PME54191433 |
Low Static Polyimide Film Tape |
33 |
14 |
|
PME54191533 |
Low Static Polyimide Film Tape |
33 |
15 |
|
PME54191733 |
Low Static Polyimide Film Tape |
33 |
17 |
|
PME54191933 |
Low Static Polyimide Film Tape |
33 |
19 |
|
PME54192033 |
Low Static Polyimide Film Tape |
33 |
20 |
|
PME54192233 |
Low Static Polyimide Film Tape |
33 |
22 |
|
PME54192533 |
Low Static Polyimide Film Tape |
33 |
25 |
|
PME54193033 |
Low Static Polyimide Film Tape |
33 |
30 |
|
PME54194033 |
Low Static Polyimide Film Tape |
33 |
40 |
|
PME54195033 |
Low Static Polyimide Film Tape |
33 |
50 |
