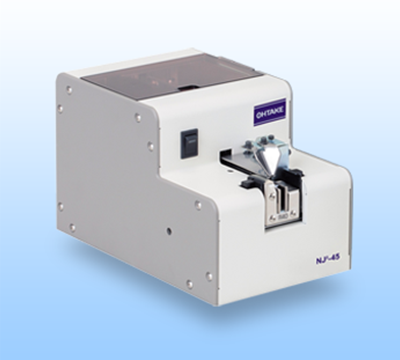

Manual Screw Feeder Ohtake NJ Type
- Compatible with larger screws
- Compatible with a wide range of screw types
- Suitable for application with hopper units
Manual Screw Feeder NJ Type
Compatible with larger screws
Can be used with up to M5 screws, with 150cc storage.
Compatible with a wide range of screw types
Stable feeding supply for spring-washer screws or other standard screws.
Suitable for application with hopper units
Can be equipped with NEJIKURA hoppers for extended production time.
Compatible with larger screws
Can be used with up to M5 screws, with 150cc storage.
Compatible with a wide range of screw types
Stable feeding supply for spring-washer screws or other standard screws.
Suitable for application with hopper units
Can be equipped with NEJIKURA hoppers for extended production time.
| Supported screw diameter (mm) |
Main component type | Swap rail set type | ||||||||
| NJ Series |
NJL Series |
NJR Series |
NJRL Series |
NJC Series |
NJ Series |
NJL Series |
NJR Series |
NJRL Series |
NJC Series |
|
|---|---|---|---|---|---|---|---|---|---|---|
| 2.0 | NJ-2320 | NJL-2320 | NJR-2320 | NJRL-2320 | NJC-2320 | R20SET | RL20SET | RR20SET | RRL20SET | R20SET |
| 2.3 | NJ-2323 | NJL-2323 | NJR-2323 | NJRL-2323 | NJC-2323 | R23SET | RL23SET | RR23SET | RRL23SET | R23SET |
| 2.6 | NJ-2326 | NJL-2326 | NJR-2326 | NJRL-2326 | NJC-2326 | R26SET | RL26SET | RR26SET | RRL26SET | R26SET |
| 3.0 | NJ-2330 | NJL-2330 | NJR-2330 | NJRL-2330 | NJC-2330 | R30SET | RL30SET | RR30SET | RRL30SET | R30SET |
| 3.5 | NJ-4535 | NJL-4535 | NJR-4535 | NJRL-4535 | NJC-4535 | R35SET | RL35SET | RR35SET | RRL35SET | R35SET |
| 4.0 | NJ-4540 | NJL-4540 | NJR-4540 | NJRL-4540 | NJC-4540 | R40SET | RL40SET | RR40SET | RRL40SET | R40SET |
| 5.0 | NJ-4550 | NJL-4550 | NJR-4550 | NJRL-4550 | NJC-4550 | R50SET | RL50SET | RR50SET | RRL50SET | R50SET |
- Product name：NJ-23 ｜ NJ-45
- Dimensions：134(W)×215(D)×139(H)
- Total weight (with rail)：Approx. 3.0kgf
- Power supply：AC100～240V DC15V 1A AC adapter included
- Overload protection：-
- Output signal：-
- Brush overload prevention：-
- Screw size：M2.0～M3.0 ｜ M3.5～M5.0
- Screw length：Up to 18㎜
- Capacity：Approx. 150cc
- Accessories：Operation Manual, AC Adapter, hex wrench, adjustment driver
