Manual Screw Feeder Ohtake SS Type

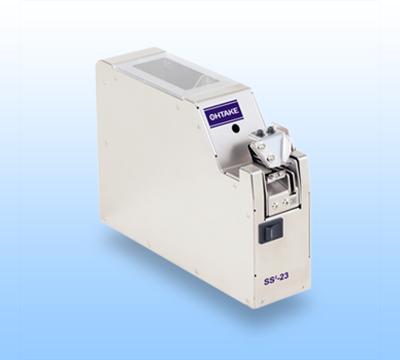

Manual Screw Feeder SS Type

Compact size suitable for cell-production lines
Slim width of 55mm

Compatible for extra-thin screw head dimension
Adjustable sensor which is compatible for 0.25mm screw head height

Speed adjustment available
The screw feeding speed can be adjusted by vibration frequency and magnitude.

Compatible with different manufacturing settings
Simple installation allows applications in various production environments




• Product name：SS-12　｜　SS-23
• Dimensions：55(W)×205(D)×143(H)
• Total weight (with rail) ：Approx. 2.4kgf
• Power supply：AC100V～240V DC15V 1A AC adapter included
• Overload protection：-
• Screw size：M1.0～M2.0　｜　M2.3～M3.0
• Screw length：Up to 16mm
• Capacity：Approx. 40cc
• Accessories：Operation Manual, AC Adapter, hex wrench, adjustment driver
