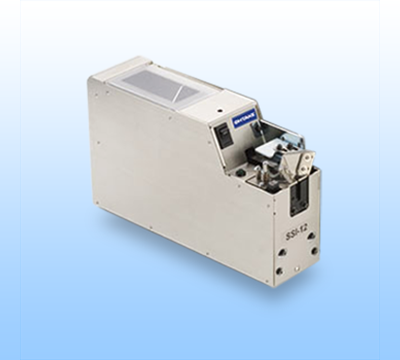

Manual Screw Feeder Ohtake SSI-M Type

Manual Screw Feeder SSI-M Type

Compact size suitable for cell-production lines
Slim width of 65mm

Higher efficiency with rotary disc escaper
Disc escaper achieves high precision without screw jamming, with highest possible feeding speed of 0.6 sec. per screw.

Smooth and efficient screw supply
Horizontal rail prevents jamming of screws

Output signal available for external counter connection



Supported screw diameter (mm)	Main component type		Swap rail set type
	SSI-M Series	SSI-R Series	SSI-M Series	SSI-R Series
1.0	SSI-12M10	SSI-12R10	SIM10SET	SIR10SET
1.2	SSI-12M12	SSI-12R12	SIM12SET	SIR12SET
1.4	SSI-12M14	SSI-12R14	SIM14SET	SIR14SET
1.7	SSI-12M17	SSI-12R17	SIM17SET	SIR17SET
2.0	SSI-12M20	SSI-12R20	SIM20SET	SIR20SET
2.3	SSI-23M23	SSI-23R23	SIM23SET	SIR23SET
2.6	SSI-23M26	SSI-23R26	SIM26SET	SIR26SET
3.0	SSI-23M30	SSI-23R30	SIM30SET	SIR30SET



• Product name：SSI-12M　｜　SSI-23M
• Dimensions：65(W)×242(D)×146(H)
• Total weight (with rail) ：Approx.3.3kgf
• Power supply：AC100V～240V DC15V 1A AC adapter included
• Overload protection：-
• Output signal：-
• Screw size：M1.0～M2.0　｜　M2.3～M3.0
• Screw length：Up to 16㎜
• Capacity：Approx. 40cc
• Accessories：Operation Manual, AC Adapter, hex wrench, adjustment driver
