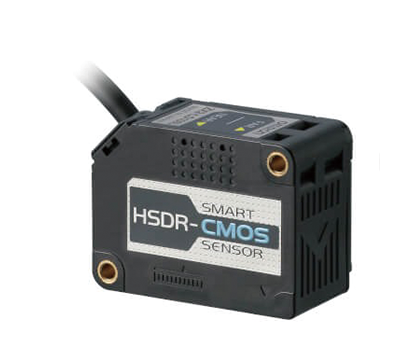

Measurement Sensor OMRON ZX2-LD100L
Laser displacement sensor, CMOS type, sensor head, line beam type, 100mm +/-35mm, 5µm resolution, 0.5m cable
Specifications
| Geometrical resolution | 0.005 mm |
| Measuring range length | 65-135 mm |
| Relative linearity deflection | 0.05 % |
| Sensing distance | 100 mm |
| Sensing distance (min.) | 65 mm |
| Sensing method | Diffuse reflective |
| Spot size | 2.7 mm x 0.1 mm |
| Height of sensor | 47.5 mm |
| Width sensor | 22.6 mm |
| Overall length | 35.5 mm |
