Sensor
|
Model |

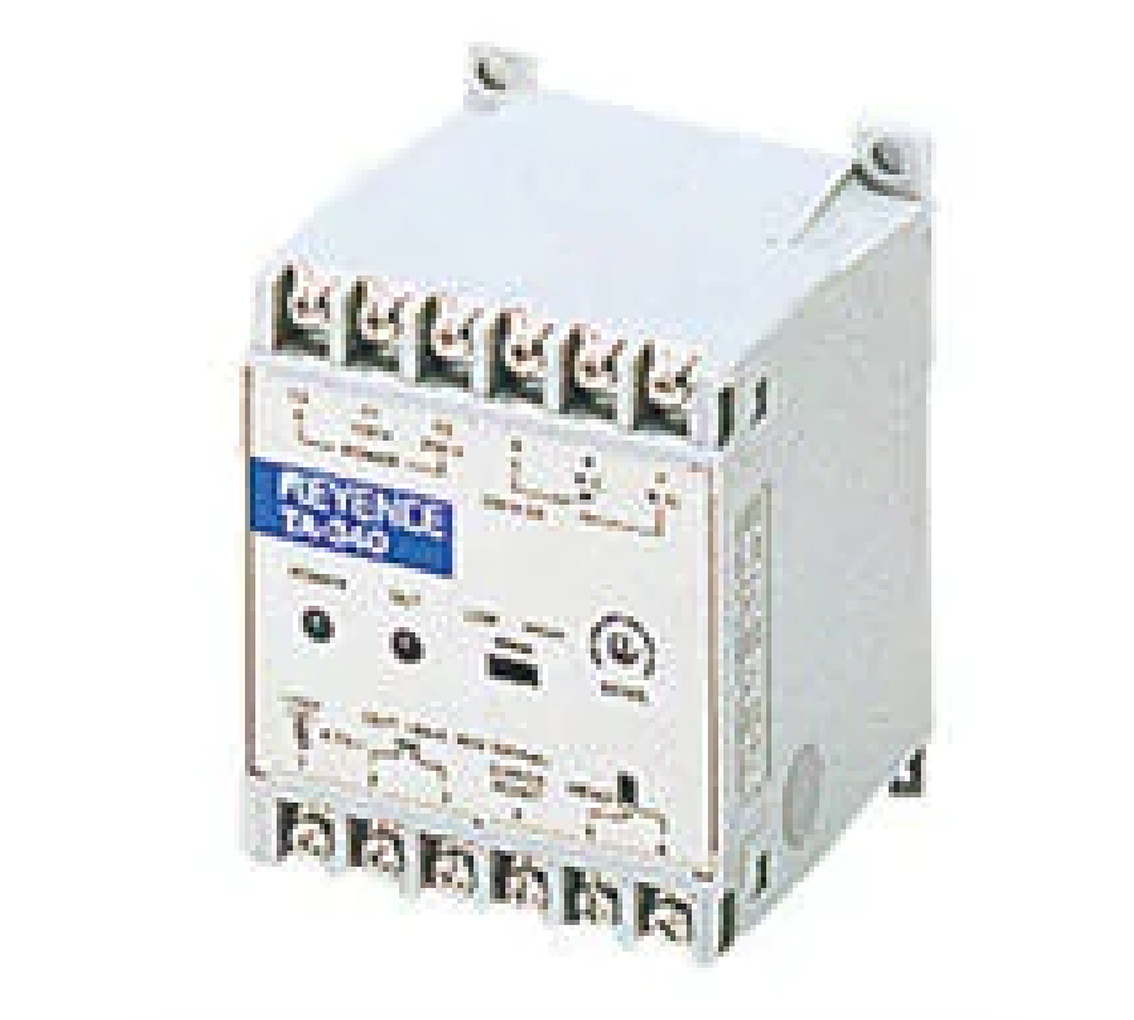

TA-340U |
|||
|
Sensitivity adjustment |
Sensitivity selector switch and fi ne-adjustment trimmer |
|||
|
Output |
Control output |
Solid-state |
100 mA (40 V max.)*1 |
|
|
Relay contact |
SPDT 250 VAC 2 A*2 |
|||
|
Control output |
1 ms |
|||
|
10 ms |
||||
|
OFF-delay time |
65 ms (contact output only) |
|||
|
Rating |
Power voltage |
110/120/220/240 VAC ±15 %, 50/60 Hz |
||
|
Power consumption |
5 VA max. |
|||
|
Environmental resistance |
Ambient temperature |
0 to +50 °C 32 to 122 °F |
||
|
Relative humidity |
35 to 85 % RH (No condensation) |
|||
|
Vibration resistance |
10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z directions |
|||
|
Accessories |
Plastic screwdriver |
|||
|
Weight |
Approx. 330 g |
|||
|
*1 Both the solid-state and contact outputs of the amplifi er are one-shot signals; the signals turn on as the object enters the sensor head. NPN output can easily be converted to PNP output by connecting the optional OP-5148 PNP Output Converter. |
||||
