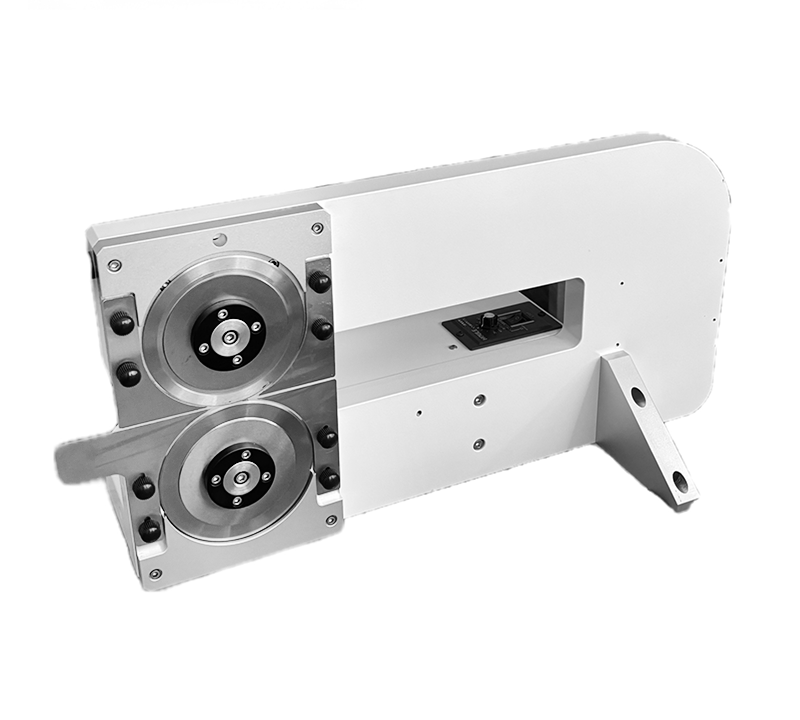

Micro-crack PCB Separator Machine Machine 330m
High Light:
- Micro-Cracks PCB Separator Machine
- Easy Operating Modes PCB Separator Machine
- Edge Guiding PCB Separator Machine
Description
Feature
Specification
- For electronics, cell phones, computers, PCB, FPC (flexible printed circuit board),LED.
- Mold made of SKH-11 Steel, Blade made of SKH-9
The characteristic feature of the steel is high strength cutting, and excellent toughness
Feature
- Minimize the shearing stress to avoid micro-cracks of the solder joints.
- Guiding device of the "V-CUT" of the PCB.
- Ball bearing slideways for easy setting of the PCB edge guides.
- Ball bearing slideways for easy setting of the height of the tabletop.
- Easy operating modes: Manual by handwheel, semi-automatic by pressing the start button or fully-automatic by continuous running.
- Cutters can be re-grinded
- The tool shape can be customized.
Specification
|
PCB Cutting Length (mm) |
330 |
|
Cutting Speed (mm/s) |
0~400 |
|
Cutting Thickness (mm) |
1.0~3.5 |
|
Power Supply (V) |
110/220 |
|
Size (mm) |
420*280*400 |
|
Weight (Kg) |
20/40 |
|
Blade Hardness (HB) |
540~567 |
|
Blade Hardness (HRC) |
60~63 |
|
Blade working life for metal (Year) |
0.5 |
|
Blade working life for PCB (Year) |
1 |
|
Guarantee (Year) |
1 |
|
Delivery (Day) |
1 |
|
Min. Order (Set) |
1 |
|
Ability (Set) |
1000 |
