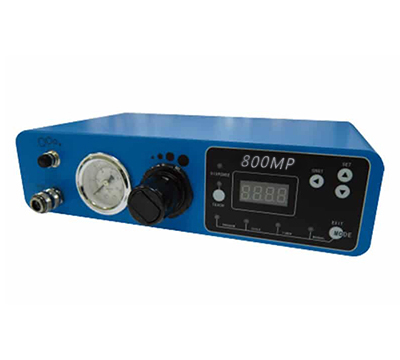

Micro Processor Dispensing Controller 800MP
Our 800MP has a bright LCD screen and 39 memory locations to automatically cycle through up to 39 self-taught programs.
Features
- Manual / Timer / Cycle operation Modes.
- Foot Pedal or Finger Switch Controlled.
- Easy teach & learn function.
- Dispense time from 0.01 – 99.99 seconds.
- Suck-Back feature ensures no dripping.
- Fast dispense speed at 600 cycles/second.
- Stores up to 39 programs.
- Compatible with DT series robot.
- One year warranty.
Specification
| Model | 800MP |
|---|---|
| Air Input | 70 ~ 100 psi ( 5 ~ 7 bar ) |
| Air Output | 1 ~ 100 psi ( 0.1 ~ 7 bar ) |
| Counter | 0.01 - 99.99 seconds |
| Program Capacity | 39 programs |
| Vacuum | Adjustable |
| Control | Manual / Timer / Cycle |
| Digital Display | Pressure / Vacuum / Time Display |
| Input Voltage | 24 VDC / 0.5 MA |
| Size (WxLxH mm) | 160 x 260 x 65 |
| Weight | 1.5 kg |
