Mid Range Distance Sensors SICK Dx35 / DT35
Type:DT35-B15251
Part No.:1057652
Part No.:1057652

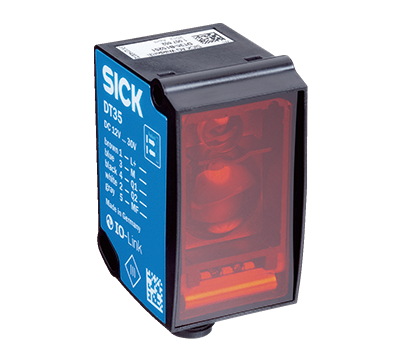

Mid Range Distance Sensors SICK Dx35 / DT35 DT35-B15251
Mechanics/electronics
Performance
Interfaces
Ambient data
Classifications
Mechanics/electronics
| Supply voltage Vs | DC 12 V ... 30 V 1) 2) |
| Ripple | ≤ 5 Vpp 3) |
| Power consumption | ≤ 1.7 W 4) |
| Initialization time | ≤ 500 ms |
| Warm-up time | ≤ 20 min |
| Housing material | Plastic (ABS/PC) |
| Window material | Plastic (PMMA) |
| Connection type | Male connector, M12, 5-pin |
| Indication | LEDs |
| Weight | 65 g |
| Dimensions (W x H x D) | 32 mm x 58.67 mm x 42.7 mm |
| Enclosure rating |
IP65 IP67 |
| Protection class | III |
- 1) Limit values, reverse-polarity protected, operation in short-circuit protected network: max. 8 A.
- 2) When using IO-Link output Vs > 18 V. When using analog voltage output Vs > 13 V.
- 3) May not fall short of or exceed VS tolerances.
- 4) Without load, at +20 °C.
Performance
| Measuring range |
50 mm ... 12,000 mm, 90 % remission 1) 2) 50 mm ... 5,300 mm, 18 % remission 50 mm ... 3,100 mm, 6 % remission |
| Target | Natural objects |
| Resolution | 0.1 mm |
| Repeatability | ≥ 0.5 mm 2) 3) 4) |
| Accuracy | Typ. ± 10 mm 4) |
| Response time | 2.5 ms ... 96.5 ms, 2.5 ms / 6.5 ms / 12.5 ms / 24.5 ms / 96.5 ms 5) 6) |
| Switching frequency | 333 Hz / 100 Hz / 50 Hz / 25 Hz / 6 Hz 5) 6) |
| Output time | 1 ms ... 32 ms, 1 ms/2 ms/4 ms/8 ms/32 ms 5) 7) |
| Light source | Laser, red 8) visible red light |
| Laser class | 2 (IEC 60825-1:2014, EN 60825-1:2014) |
| Typ. light spot size (distance) | 15 mm x 15 mm (at 2 m) |
| Additional function | Set speed: Super Fast ... Super Slow, teach-in of analog output and invertible analog output, Output Q2 adaptable: Current output / Voltage output / Digital output, Switching mode: Distance to Object (DtO) / switching window / object between sensor and background (ObSB), teach-in of digital output and digital output invertible, Multifunctional input: laser off / external teach / deactivated, reset to factory default |
| Average laser service life (at 25 °C) | 100,000 h |
- 1) For speed setting Slow.
- 2) See repeatability characteristic lines.
- 3) Equivalent to 1 σ.
- 4) 6 % ... 90 % remission.
- 5) Depending on the set speed: Super Fast ... Super Slow.
- 6) Lateral entry of the object into the measuring range.
- 7) Continuous change of distance in measuring range.
- 8) Wavelength: 658 nm; max. output: 250 mW; pulse duration: 3 ns; duty cycle: 1/250.
Interfaces
|
|||||||||||||||
|
|||||||||||||||
|
|||||||||||||||
| Multifunctional input (MF) | 1 x 3) | ||||||||||||||
| Hysteresis | 0 mm ... 11,950 mm 4) | ||||||||||||||
- 1) Output Q short-circuit protected.
- 2) Voltage drop < 3 V.
- 3) Response time ≤ 60 ms.
- 4) Configurable via IO-Link.
Ambient data
| Ambient temperature, operation | –30 °C ... +55 °C, Uv ≤ 24 V |
| Ambient temperature, storage | –40 °C ... +75 °C |
| Max. rel. humidity (not condensing) | ≤ 95 % |
| Vibration resistance | EN 60068-2-6, EN 60068-2-64 |
| Shock resistance | EN 60068-2-27 |
Classifications
| ECl@ss 5.0 | 27270801 |
| ECl@ss 5.1.4 | 27270801 |
| ECl@ss 6.0 | 27270801 |
| ECl@ss 6.2 | 27270801 |
| ECl@ss 7.0 | 27270801 |
| ECl@ss 8.0 | 27270801 |
| ECl@ss 8.1 | 27270801 |
| ECl@ss 9.0 | 27270801 |
| ECl@ss 10.0 | 27270801 |
| ECl@ss 11.0 | 27270801 |
| ETIM 5.0 | EC001825 |
| ETIM 6.0 | EC001825 |
| ETIM 7.0 | EC001825 |
| ETIM 8.0 | EC001825 |
| UNSPSC 16.0901 | 41111613 |
