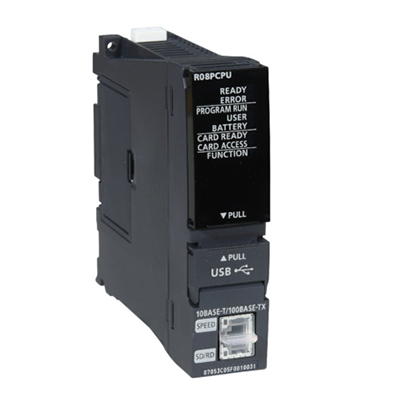

Mitsubishi iQ-R Programmable controller CPU R08PCPU
Mitsubishi MELSEC iQ-R Series PLC
FA-MOD PLC: CPU Module
| Series | MELSEC IQ-R SERIES |
|---|---|
| Type | PROCESS CPU |
| Program Memory | 80K |
| Program Memory Unit | STEPS |
| Local I/O Points | 4096 |
| Local + Remote I/O Points | 4096 |
| Cycle Time LD (ns) | 0,98 |
| Cycle Time MOV (ns) | 1,96 |
| USB | 1 |
| Ethernet Port | 1 |
| Buffer Battery | YES |
| Int. Current Consumption (A) | 0,76 |
Product Dimensions & Weight
| Width (mm) | 27,8 |
|---|---|
| Height (mm) | 98 (106) |
| Depth (mm) | 110 |
| Weight (kg) | 0,2 |
Conformity
| CE | COMPLIANT |
|---|---|
| UL/cUL | COMPLIANT |
| EAC | COMPLIANT |
| Shipping Approvals | ABS,BV,DNV GL,LR,NK,RINA |
| UKCA | COMPLIANT |
