Servo Motor, PLC& HMI

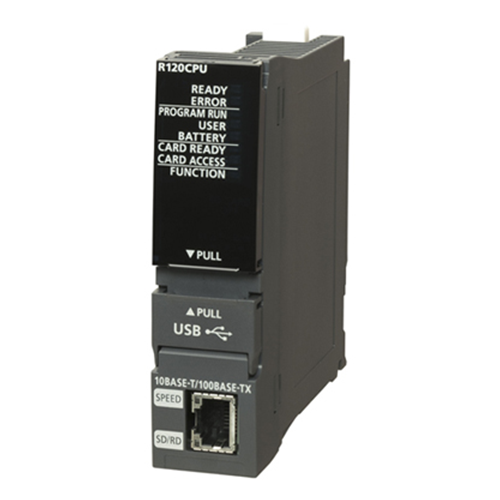

Mitsubishi iQ-R Programmable controller CPU R16CPU
Mitsubishi MELSEC iQ-R Series PLC
FA-MOD PLC: CPU Module
| Series |
MELSEC IQ-R SERIES |
| Type |
STANDARD CPU |
| Program Memory |
160K |
| Program Memory Unit |
STEPS |
| Local I/O Points |
4096 |
| Local + Remote I/O Points |
16384 |
| Cycle Time LD (ns) |
0,98 |
| Cycle Time MOV (ns) |
1,96 |
| USB |
1 |
| Ethernet Port |
1 |
| Buffer Battery |
YES |
| Int. Current Consumption (A) |
0,67 |
Product Dimensions & Weight
| Width (mm) |
27,8 |
| Height (mm) |
98 (106) |
| Depth (mm) |
110 |
| Weight (kg) |
0,2 |
Conformity
| CE |
COMPLIANT |
| UL/cUL |
COMPLIANT |
| EAC |
COMPLIANT |
| Shipping Approvals |
ABS,BV,DNV GL,LR,NK,RINA |
| UKCA |
COMPLIANT |
Product Packaging
| Cardboard (g) |
45 |
| Other paper (g) |
26 |
| Aluminum (g) |
0 |
| Steel (g) |
0 |
| Styrofoam (g) |
0 |
| Other plastic (g) |
3 |
| Wood (g) |
0 |
| Glass (g) |
0 |
| Others (g) |
0 |
Environmental
| REACH Limit Exceeded |
YES |
| REACH Substance CAS Number |
2451-62-9, 7439-92-1, 1303-86-2, 12060-00-3, 110-71-4 |
| Dangerous Goods Regulations |
NO |
| RoHS Compliance |
COMPLIANT |
| WEEE |
B2B |
