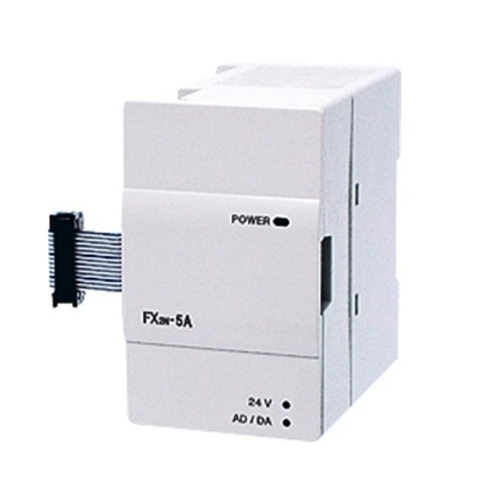

FA-COM PLC: Analogue I/O Module
Series |
MELSEC-F SERIES |
Type |
FX2N |
Power Supply (V) |
24 |
Current Type |
DC |
Occupied I/O Points on PLC |
8 |
Integrated Analogue Inputs |
4 |
Integrated Analogue Outputs |
1 |
Input Voltage Range (V) |
-10-10; -0,1-0,1 |
Input Current Range (mA) |
-20-20; 4-20 |
Output Voltage Range (V) |
-10-10 |
Output Current Range (mA) |
0-20; 4-20 |
Min. Ambient Temperature (°C) |
0 |
Max. Ambient Temperature (°C) |
55 |
Product Dimensions & Weight
Width (mm) |
55 |
Height (mm) |
90 |
Depth (mm) |
87 |
Weight (kg) |
0,3 |
Conformity
CE |
COMPLIANT |
UL/cUL |
COMPLIANT |
EAC |
COMPLIANT |
Shipping Approvals |
BV,DNV GL,RINA |
UKCA |
COMPLIANT |
