Servo Motor, PLC& HMI

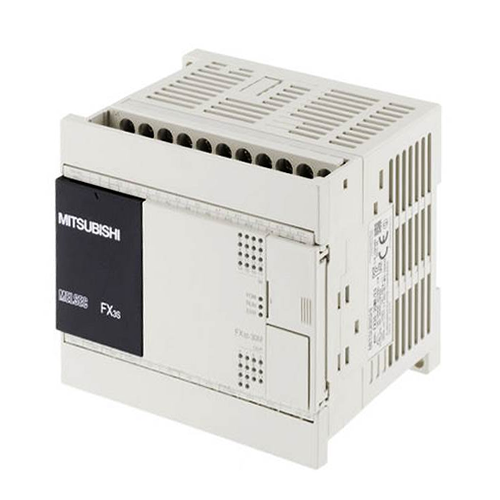

Mitsubishi PLC Controller module FX3S-30MR/DS
- Mitsubishi PLC Module FX3S/FX3SA
FA-COM PLC: Main Unit
| Type |
FX3S |
| Power Supply (V) |
24 |
| Current Type |
DC |
| Program Memory |
16K STEPS |
| Program Memory Unit |
EEPROM |
| Integrated Digital Inputs |
16 |
| Integrated Digital Outputs |
14 |
| Output Type |
RELAY |
| Local I/O Points |
30 |
| Local + Remote I/O Points |
30 |
| Expandable |
NO |
| Cycle Time LD (ns) |
210 |
| Cycle Time MOV (ns) |
500 |
| USB |
1 |
| RS-422 |
1 |
| Power Consumption (W) |
8,5 |
| Buffer Battery |
NO |
| Protection Class |
IP10 |
| Min. Ambient Temperature (°C) |
0 |
| Max. Ambient Temperature (°C) |
55 |
| Series |
MELSEC-F SERIES |
Product Dimensions & Weight
| Width (mm) |
100 |
| Height (mm) |
90 |
| Depth (mm) |
49 |
| Weight (kg) |
0,45 |
Conformity
| CE |
COMPLIANT |
| UL/cUL |
COMPLIANT |
| EAC |
COMPLIANT |
| Shipping Approvals |
ABS,BV,DNV GL,LR,NK |
| UKCA |
COMPLIANT |
Product Packaging
| Cardboard (g) |
73 |
| Other paper (g) |
0 |
| Aluminum (g) |
0 |
| Steel (g) |
0 |
| Styrofoam (g) |
0 |
| Other plastic (g) |
0 |
| Wood (g) |
0 |
| Glass (g) |
0 |
| Others (g) |
0 |
Environmental
| REACH Limit Exceeded |
NO |
| Dangerous Goods Regulations |
NO |
| RoHS Compliance |
COMPLIANT |
| WEEE |
B2B |
