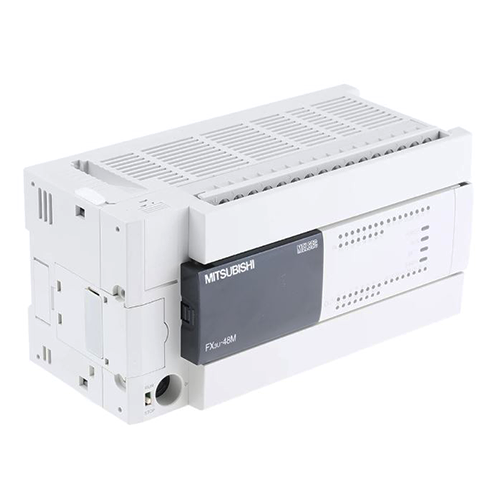

Mitsubishi PLC Controller Module FX3U-48MR/DS
- Mitsubishi PLC Module FX3U/FX3UC
FA-COM PLC: Main Unit
| Type |
FX3U |
| Power Supply (V) |
24 |
| Current Type |
DC |
| Program Memory |
64K STEPS |
| Program Memory Unit |
RAM |
| Integrated Digital Inputs |
24 |
| Integrated Digital Outputs |
24 |
| Output Type |
RELAY |
| Local I/O Points |
256 |
| Local + Remote I/O Points |
384 |
| Expandable |
YES |
| Cycle Time LD (ns) |
65 |
| Cycle Time MOV (ns) |
642 |
| USB |
OPTION |
| RS-422 |
1 |
| Power Consumption (W) |
35 |
| Buffer Battery |
YES |
| Protection Class |
IP10 |
| Min. Ambient Temperature (°C) |
0 |
| Max. Ambient Temperature (°C) |
55 |
| Series |
MELSEC-F SERIES |
Product Dimensions & Weight
| Width (mm) |
182 |
| Height (mm) |
90 |
| Depth (mm) |
86 |
| Weight (kg) |
0,85 |
Conformity
| CE |
COMPLIANT |
| UL/cUL |
COMPLIANT |
| EAC |
COMPLIANT |
| Shipping Approvals |
ABS,BV,DNV GL,KR,LR,NK,RINA |
| UKCA |
COMPLIANT |
