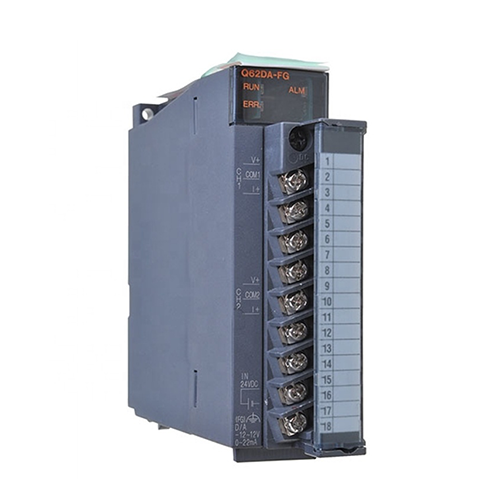

Mitsubishi Q series Analog modules Q62DA-FG
Mitsubishi Q series Analog modules Q61LD
FA-MOD PLC: Analogue I/O Module
| Series |
MELSEC-Q SERIES |
| Type |
ANALOG OUTPUT |
| Power Supply (V) |
24 |
| Current Type |
DC |
| Occupied I/O Points on PLC |
16 |
| Integrated Analogue Outputs |
2 |
| Output Voltage Range (V) |
-10-10; 0-5; 1-5 |
| Output Current Range (mA) |
0-20; 4-20 |
| Wiring |
SCREW |
| Int. Current Consumption (A) |
0,37 |
Product Dimensions & Weight
| Width (mm) |
27,4 |
| Height (mm) |
98 |
| Depth (mm) |
112 |
| Weight (kg) |
0,2 |
Conformity
| CE |
COMPLIANT |
| UL/cUL |
COMPLIANT |
| EAC |
COMPLIANT |
| Shipping Approvals |
ABS,BV,DNV GL,LR,NK,RINA |
| UKCA |
COMPLIANT |
Product Packaging
| Cardboard (g) |
55 |
| Other paper (g) |
1 |
| Aluminum (g) |
0 |
| Steel (g) |
0 |
| Styrofoam (g) |
0 |
| Other plastic (g) |
17 |
| Wood (g) |
0 |
| Glass (g) |
0 |
| Others (g) |
0 |
Environmental
| REACH Limit Exceeded |
YES |
| REACH Substance CAS Number |
7439-92-1, 80-05-7, 13560-89-9 |
| Dangerous Goods Regulations |
NO |
| RoHS Compliance |
COMPLIANT |
| WEEE |
B2B |
