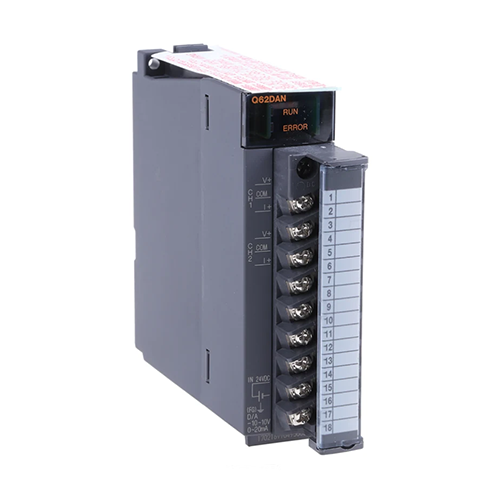

Mitsubishi Q series Analog modules Q62DAN
- Mitsubishi PLC CPU Module Q Series
FA-MOD PLC: Analogue I/O Module
| Series | MELSEC-Q SERIES |
|---|---|
| Type | ANALOG OUTPUT |
| Power Supply (V) | 24 |
| Current Type | DC |
| Occupied I/O Points on PLC | 16 |
| Integrated Analogue Outputs | 2 |
| Output Voltage Range (V) | -10-10; 0-5; 1-5 |
| Output Current Range (mA) | 0-20; 4-20 |
| Wiring | SCREW |
| Int. Current Consumption (A) | 0,33 |
Product Dimensions & Weight
| Width (mm) | 27,4 |
|---|---|
| Height (mm) | 98 |
| Depth (mm) | 112 |
| Weight (kg) | 0,19 |
Conformity
| CE | COMPLIANT |
|---|---|
| UL/cUL | COMPLIANT |
| EAC | COMPLIANT |
| Shipping Approvals | ABS,BV,DNV GL,LR,NK,RINA |
| UKCA | COMPLIANT |
