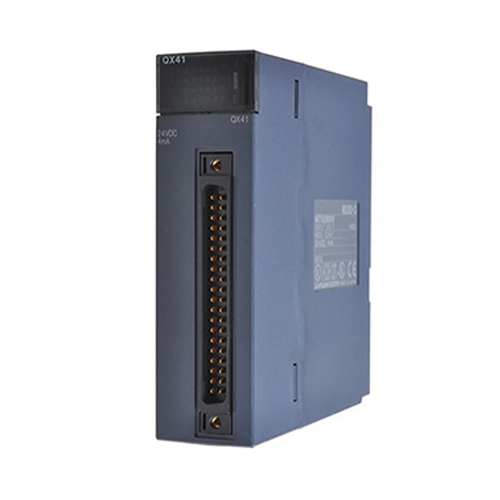

Mitsubishi Q Series Input I/O module QX41
FA-MOD PLC: Digital Input Module
| Series |
MELSEC-Q SERIES |
| Type |
DC INPUT (PLUS COMMON) |
| Occupied I/O Points on PLC |
32 |
| Integrated Digital Inputs |
32 |
| Rated Input Voltage (VDC) |
24 |
| Wiring |
CONNECTOR |
| Int. Current Consumption (A) |
0,075 |
Product Dimensions & Weight
| Width (mm) |
27,4 |
| Height (mm) |
98 |
| Depth (mm) |
90 |
| Weight (kg) |
0,15 |
Conformity
| CE |
COMPLIANT |
| UL/cUL |
COMPLIANT |
| EAC |
COMPLIANT |
| Shipping Approvals |
ABS,BV,DNV GL,LR,NK,RINA |
| UKCA |
COMPLIANT |
Product Packaging
| Cardboard (g) |
40 |
| Other paper (g) |
0 |
| Aluminum (g) |
0 |
| Steel (g) |
0 |
| Styrofoam (g) |
0 |
| Other plastic (g) |
0 |
| Wood (g) |
0 |
| Glass (g) |
0 |
| Others (g) |
0 |
Environmental
| REACH Limit Exceeded |
YES |
| REACH Substance CAS Number |
7439-92-1 |
| Dangerous Goods Regulations |
NO |
| RoHS Compliance |
COMPLIANT |
| WEEE |
B2B |
