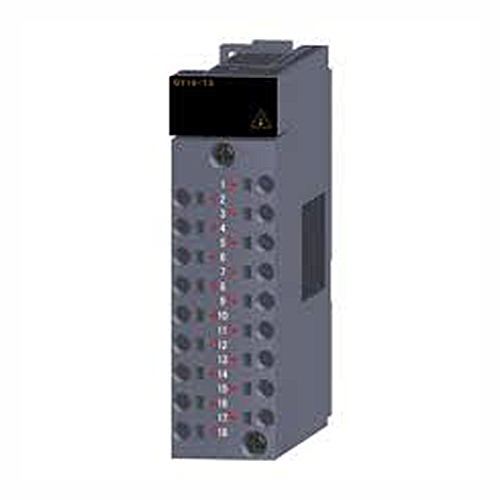

Mitsubishi Q Series output I/O module QY10-TS
- Mitsubishi PLC CPU Module Q Series
FA-MOD PLC: Digital Output Module
| Series | MELSEC-Q SERIES |
|---|---|
| Type | RELAY OUTPUT |
| Occupied I/O Points on PLC | 16 |
| Integrated Digital Outputs | 16 |
| Output Type | RELAY |
| Rated Load Voltage (VAC) | 240 |
| Rated Load Voltage (VDC) | 24 |
| Wiring | SCREW |
| Int. Current Consumption (A) | 0,43 |
Product Dimensions & Weight
| Width (mm) | 27,4 |
|---|---|
| Height (mm) | 98 |
| Depth (mm) | 90 |
| Weight (kg) | 0,22 |
Conformity
| CE | COMPLIANT |
|---|---|
| UL/cUL | COMPLIANT |
| EAC | COMPLIANT |
| UKCA | COMPLIANT |
