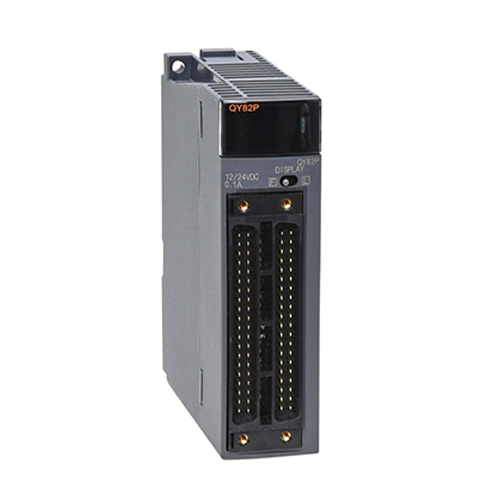

FA-MOD PLC: Digital Output Module
| Series |
MELSEC-Q SERIES |
| Type |
TRANSISTOR OUTPUT (SOURCE) |
| Power Supply (V) |
12-24 |
| Current Type |
DC |
| Occupied I/O Points on PLC |
64 |
| Integrated Digital Outputs |
64 |
| Output Type |
TRANSISTOR |
| Output Logic |
SOURCE |
| Rated Load Voltage (VDC) |
12-24 |
| Wiring |
CONNECTOR |
| Int. Current Consumption (A) |
0,16 |
Product Dimensions & Weight
| Width (mm) |
27,4 |
| Height (mm) |
98 |
| Depth (mm) |
90 |
| Weight (kg) |
0,17 |
Conformity
| CE |
COMPLIANT |
| UL/cUL |
COMPLIANT |
| EAC |
COMPLIANT |
| Shipping Approvals |
ABS,BV,DNV GL,LR,NK,RINA |
| UKCA |
COMPLIANT |
