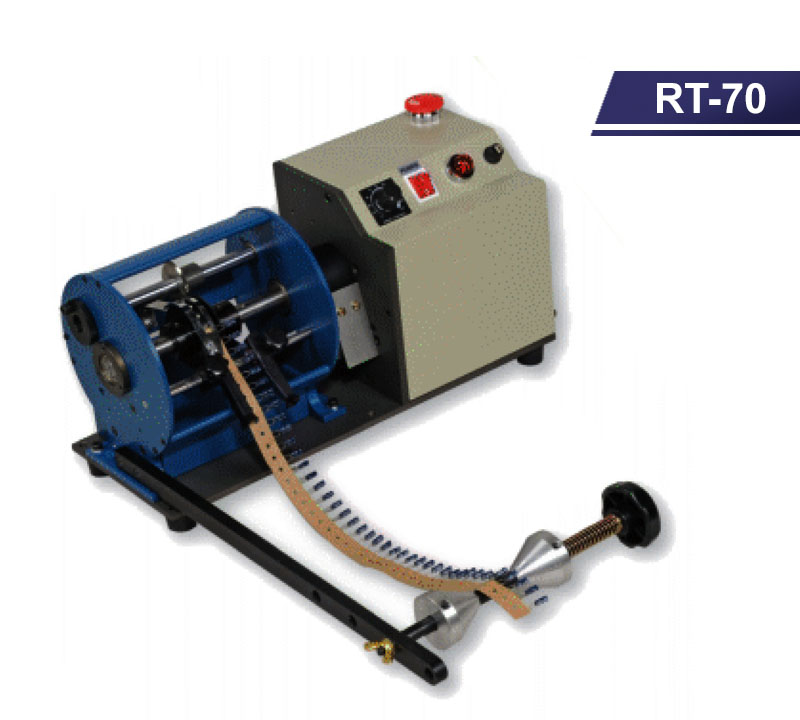

Motorized Taped Radial Lead Trimmer

RT-79 / RT-70 series of high-speed hand-crank and motorized radial lead cutters offer easy, no tooling required set-up. These machines neither score nor damage component leads, even if they don't lay mechanical stress or axial tension on the component. The machine cuts components from single bandoleers with a fully adjustable lead length from 2 mm to
10mm, and the blade will accommodate lead diameter from 0.3 mm to 1.2 mm.

• Independent rotary disc cutters obtain longer cutting life.
• Won't score or damage leads or components.
• Heavy duty construction. Easy maintenance.
• Simple operation.
• Different hole pitches (A) on paper tape apply for different models.



(mm)	Standard			Special(S)
Type	Manual		Motorized	Manual		Motorized
Model	RT-79		RT-70	RT-79S		RT-70S
Size	L	d	A	L	d	A
Min	2	0.3	12.7	2	0.3	15
Max	10	1.2		10	1.2
