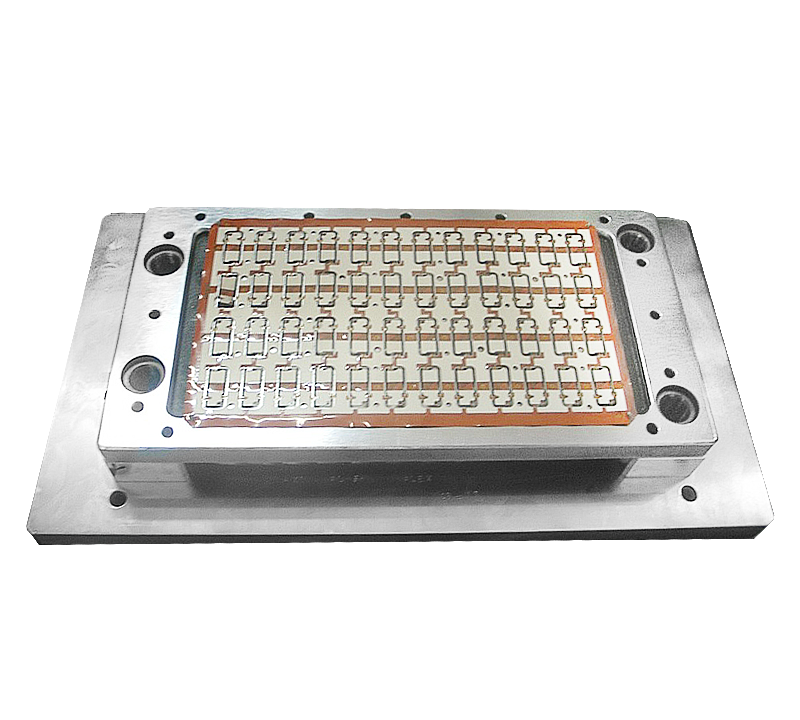

Moveable Die PCB Punching Tool
- Life Cycle: 200000 Times
- Standard Operation Temperature: 260°C
- Maximum Operation Temperature (°C): 350
- Sheet Size (mm): Customizable
- ISO9001 PCB Punching Tool
- Asp23 PCB Punching Tool
- ISO9001 Punch and Die Tool
Description
For electronics, cell phones, computers, PCB, FPC (flexible printed circuit board)
Spare parts for punching molding
Mold make of SKH-11 Steel, Blade make of SKH-9
The characteristic feature of the steel is high strength cutting, and excellent toughness
Feature
For electronics, cell phones, computers, PCB, FPC (flexible printed circuit board)
Spare parts for punching molding
Mold make of SKH-11 Steel, Blade make of SKH-9
The characteristic feature of the steel is high strength cutting, and excellent toughness
Feature
- Depaneling PCB/FPC by means of punching dies, to avoid micro-cracks caused by manual.
- High quality Cast Iron Framework for Rigidity.
- Punching dies is changeable.
- It easy to install the punching dies.
- Moveable below die make it easier for loading and unloading PCB punch die/FPC die/PCB punch mold/FPC mold
|
Model |
|
|
PCB Area (mm) |
460*320 |
|
Contribute (Tone) |
8 |
|
Size (mm) |
930*880*1230 |
|
Power Supply (V) |
110/220 |
|
Weight (Kg) |
680 |
|
Guarantee (Year) |
1 |
|
Delivery (Day) |
1 |
|
Min. Order (Set) |
1 |
|
Ability (Set) |
1000 |
