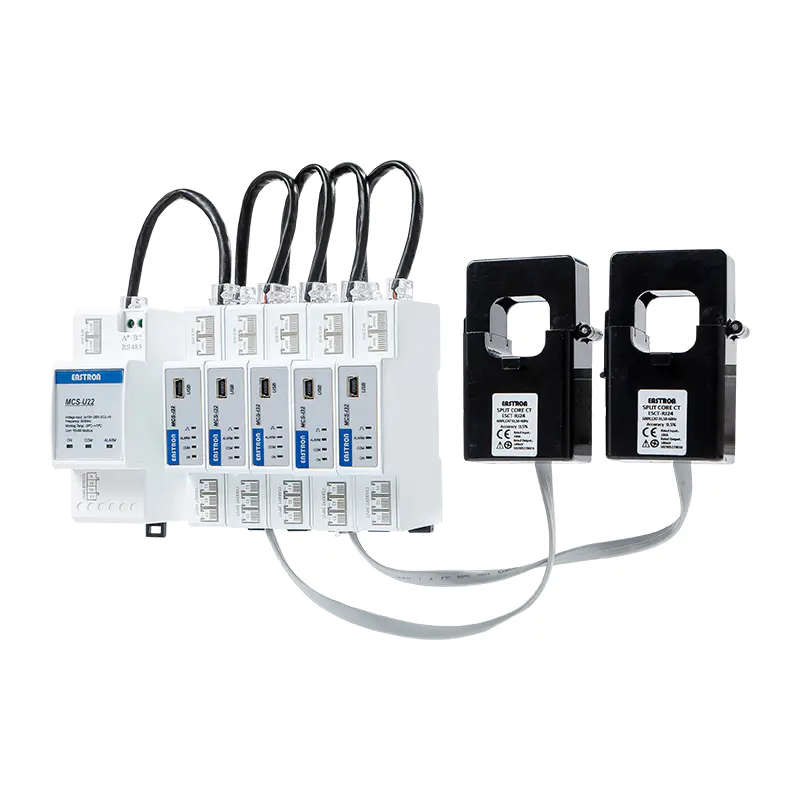

Multi Click Solution For Multi-circuit Metering Eastron MCS
- Easy set up with auto detection of modules on the MCS-Bus
- Auto-Address of each module
- Alarm for high voltage, over current, addressing conflicts,etc.
- Higher Measurement accuracy Class 0.5s
- Flexibity, Labour saving
- Plug In Technology, removing any potential wiring errors
- Space saving, multi-circuits from one centralized point
|
Electrical characteristics |
||
|
Type of measurement |
RMS including harmonics on three phase AC system (3P, 3P+N) |
|
|
Measurement accuracy |
Power |
IEC 61557-12 Class 0.5 |
|
Active Energy |
IEC 62053-22 Class 0.5S, IEC 62053-21 Class 1.0 |
|
|
Reactive Energy |
IEC62053-23 Class 2, IEC 61557-12 Class 2 |
|
|
Frequency |
±0.1% |
|
|
Current |
±0.2% |
|
|
Voltage |
±0.2% |
|
|
Power Factor |
±0.01 |
|
|
Terminals |
||
|
MCS-D |
||
|
Type |
Quantity |
Description |
|
MCS-BUS (RJ45 connection) |
1 port |
interconnection with MCS-D module and the MCS-U modules |
|
Ethernet Port |
1 port |
Ethernet Modbus TCP/ Gateway |
|
RS485 Modbus port |
1 port |
RS485 Modbus communication |
|
Aux. power supply |
1 port |
85~276V AC power supply |
|
MCS-U |
||
|
Type |
Quantity |
Descrption |
|
MCS-BUS (RJ45 connection) |
2 ports |
interconnection with MCS-D module and the next MCS-I modules |
|
Voltage input |
1 port |
Power Supply |
|
RS485 Modbus port |
1 port |
RS485 Modbus communication |
|
MCS-I |
||
|
Micro-USB Type B |
1 port |
Connect to a PC for programming and reading |
|
MCS-BUS (RJ45 connection) |
2 ports |
interconnection with MCS-U module and MCS-I modules |
|
CURRENT INPUTS (RJ12 connection) |
3 ports |
Connect with 1x three phase current transformer or 3x single phase current transformers |
|
RS485 Modbus Communications |
|
|
Communication address |
1~247 |
|
Max. Bus loading |
32pcs MCS-I |
|
Transmission distance |
1000m Maximum |
|
Baud Rate |
1200/2400/4800/9600 (in default)19200/38400 bps |
|
Parity |
None (default), Odd, Even |
|
Data bit |
8 |
|
Stop bit |
1 or 2 |
