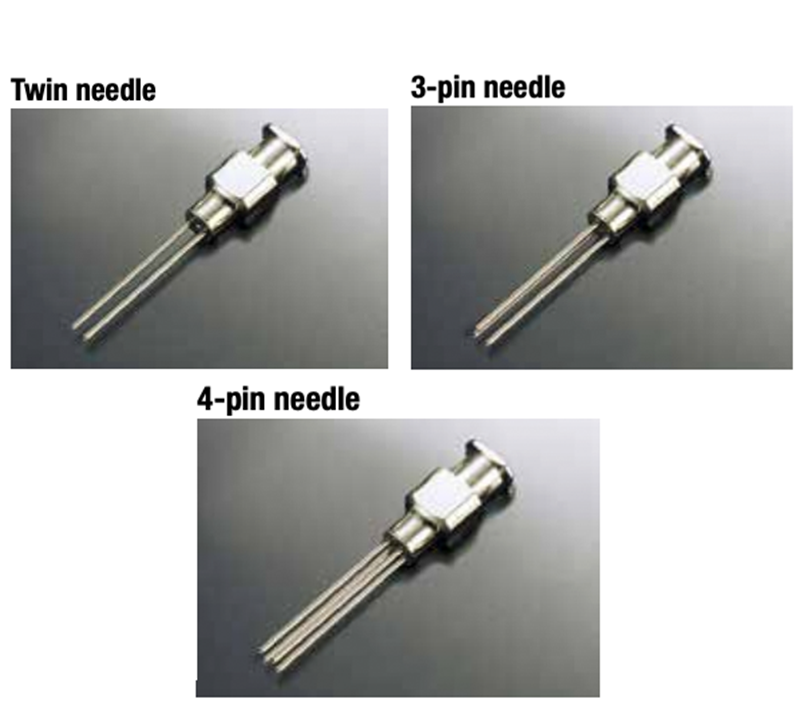

Multi-Point Dispensing needle Twin needle 3-pin needle 4-pin needle Musashi DN
Excellent performance in simultaneous multi-point dispensing
Simultaneous multi-point dispensing will shorten tack time to half to one-fourth! Needle material: Stainless steel Needle base material: Brass (Nickel plate)
Simultaneous multi-point dispensing will shorten tack time to half to one-fourth! Needle material: Stainless steel Needle base material: Brass (Nickel plate)
- DN-[]G
- DN-[]G-3P
| Gauge | Needle length 20 mm | Needle OD (ϕ) | Needle ID (ϕ) | Minimum Order Quantity |
||
|---|---|---|---|---|---|---|
| Twin needle Model |
3-pin needle Model |
4-pin needle Model |
||||
| 16 | DN-16G | — | — | 1.67 | 1.19 | 1 |
| 17 | DN-17G | — | — | 1.56 | 1.04 | 1 |
| 18 | DN-18G | DN-18G-3P | — | 1.22 | 0.86 | 1 |
| 19 | DN-19G | DN-19G-3P | — | 1.00 | 0.68 | 1 |
| 20 | DN-20G | DN-20G-3P | — | 0.91 | 0.58 | 1 |
| 21 | DN-21G | DN-21G-3P | DN-21G-4P | 0.83 | 0.49 | 1 |
| 22 | DN-22G | DN-22G-3P | DN-22G-4P | 0.72 | 0.39 | 1 |
| 23 | DN-23G | DN-23G-3P | DN-23G-4P | 0.63 | 0.32 | 1 |
| 24 | DN-24G | DN-24G-3P | DN-24G-4P | 0.57 | 0.29 | 1 |
| 25 | DN-25G | DN-25G-3P | DN-25G-4P | 0.50 | 0.26 | 1 |
| 26 | DN-26G | DN-26G-3P | DN-26G-4P | 0.46 | 0.24 | 1 |
| 27 | DN-27G | DN-27G-3P | DN-27G-4P | 0.41 | 0.20 | 1 |
| 28 | DN-28G | DN-28G-3P | DN-28G-4P | 0.35 | 0.15 | 1 |
Note: 1. Customization of products with needle pitch and length specified is available. 2. The values above are different from the needle pipe diameters of SN needles.
