Sensor

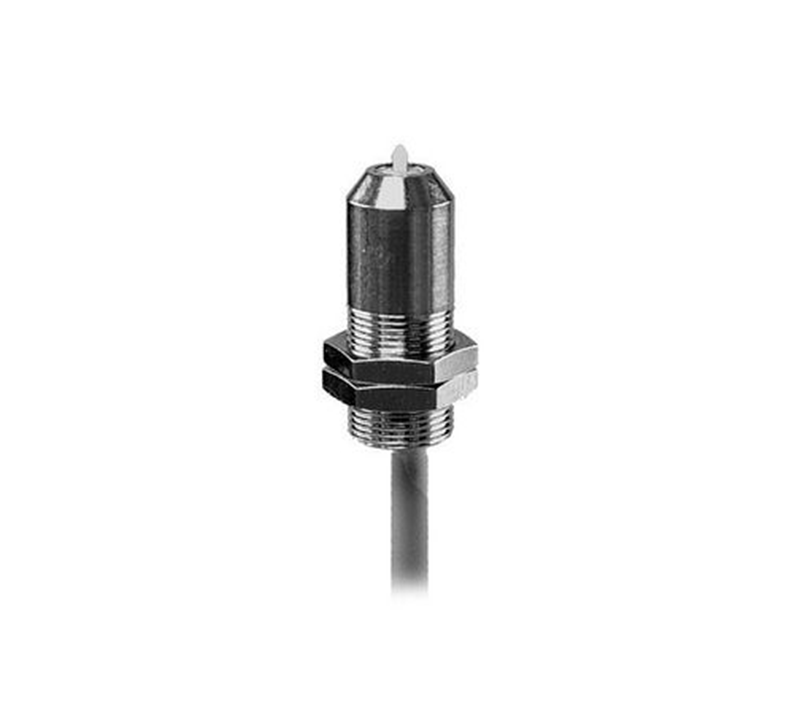

My-Com precision switches Baumer MY-COM A75/80
| General Data |
| Repeat Accuracy |
< 0.001 mm |
| Activating Force |
75 cN |
| Mech. Pre-run / Overrun |
- / 1.5 mm approx. |
| Measurement Type |
Contact with medium |
| Direction of Approach |
Frontal |
| Electrical Data |
| DC Voltage Max. |
15 VDC |
| Switching Current DC Max. |
2 mA |
| AC Voltage Max. |
24 VAC |
| Switching Current AC Max. |
50 mA |
| Output Circuit |
Break function (NC) mechanical |
| Mechanical Data |
| Activating Pin |
Zirconium oxide ZrO2 |
| Housing Material |
Brass nickel plated |
| Dimension |
8 mm |
| Type |
Cylindrical threaded |
| Housing Length |
20 mm |
| Connection Types |
Cable, 80 cm |
| Ambient Conditions |
| Operating Temperature |
-20 ... +75 °C |
| Protection Class |
IP 50 |
